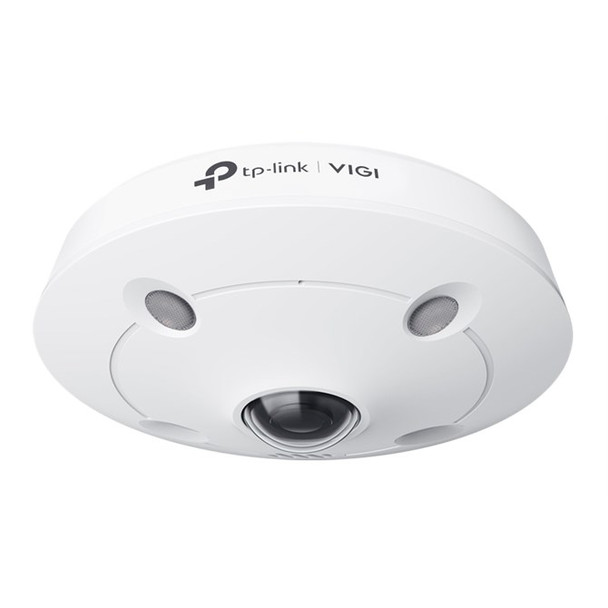

TP-Link InSight S655I IP security camera Indoor 2560 x 1920 pixels Ceiling/wall INSIGHTS655I

360° Coverage with 4-in-1 Cameras
A single fisheye camera can play the role of many, providing a simpler and more competitive security solution. For example, in 4PTZ display mode, it functions as four cameras at once, delivering complete coverage and flexible perspectives.

Multiple Display Modes
Along with the fisheye view, VIGI provides multiple display modes, enabling you to focus on every detail exactly as you prefer.

Smart Video Enhancement Technology
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.

Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.

3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.

White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.

Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.

Specs




Performance


Type

Characteristics of the device.

IP security camera


Placement supported

Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.

Indoor


Connectivity technology

The technology that enables connectivity of the device, e.g. wired or wireless.

Wired


Wide Dynamic Range (WDR)




Day/night mode




Infrared (IR) cut-off filter




Dynamic range
0 dB


Certification

CE; NTRA; KC; FCC; VCCI; BSMI; ONVIF


Design


Mounting type

Type of mounting e.g. wall mounting.

Ceiling/wall


Product colour

The colour e.g. red, blue, green, black, white.

White


Housing material

What the casing of the product is made of.

Metal


Protection features

Physical effects from which the product is protected e.g. water resistant, crash proof.

Weatherproof


International Protection (IP) code

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

IP67


IK code

IK10


Weatherproof




Camera


Minimum illumination

Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality.

0 lx


Lens viewing angle, horizontal
0°


Lens viewing angle, vertical
0°


Lens viewing angle, diagonal
0°


Camera shutter speed

Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure.

1/3 - 1/10000 s


Number of Privacy masking areas

4


Image sensor


Optical sensor size

Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes.

25.4 / 2.7 mm (1 / 2.7")


Progressive scan

Also referred to as noninterlaced scanning, this is a way of displaying, storing, or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to interlaced video used in traditional analog television systems where only the odd lines, then the even lines of each frame (each image called a video field) are drawn alternately.Progressive scan is used for DVDs and HDTV (high defintion television).




Sensor type

A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.

CMOS


Panoramic camera


Sensor type (panoramic camera)

CMOS


Signal-to-Noise Ratio (SNR) (panoramic camera)

52 dB


Digital Wide Dynamic Range (DWDR) (panoramic camera)




Lens system


Detect distance

28.8 m


Observe distance
m


Recognize distance

5.7 m


Maximum aperture number

2


Identify distance

2.8 m


Fixed focal length

1.44 mm


Night vision


Night vision

Night vision is technology which allows you to see in low light conditions.




Night vision distance
m


LED type

IR


Number of illumination LEDs

4


Infra-red wavelength

850 nm


Video


Maximum resolution

The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.

2560 x 1920 pixels


Total megapixels

A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels).

5 MP


Video compression formats

H.264, H.264+, H.265, H.265+


Supported graphics resolutions

The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.

320 x 240, 640 x 480 (VGA), 1280 x 960, 2048 x 1536 (QXGA), 2560 x 1920


Frame rate

30 fps


Video streaming




Noise reduction technology

3D noise reduction


Image quality adjustment

Brightness, Contrast, Saturation, Sharpness


Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)


Bit rate

64 Kbps to 6 Mbps


Back Light Compensation (BLC)




Highlight Compensation (HLC)





Video


Digital Wide Dynamic Range (DWDR)




Region of Interest (ROI) encoding




Smart IR




Audio


Built-in speaker(s)

The device contains speaker(s) to produce sound.




Audio system

System used to play music or speech.

2-way


Sample rate

8 kHz


Signal-to-Noise Ratio (SNR)

This is the ratio of signal intensity to noise intensity.

52 dB


Built-in microphone

Microphone that is found inside the product.




Number of microphones

1


Bit rate range

0 - 64 Kbit/s


Network


Ethernet LAN

An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.




Ethernet interface type

Fast Ethernet


Networking standards

The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u


Supported network protocols

Network protocols tested as compatible with this product e.g. FTP,HTML, POP.

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP


Wi-Fi

Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.




Bluetooth

Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.




Client interoperability

Utility, VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS


Number of simultaneous live view channels

6 channels


Storage


Built-in HDD

The product has a hard drive built into it.




Card reader integrated

A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.




Compatible memory cards

Types of memory cards which can be used with this product.

MicroSD (TransFlash)


Maximum memory card size

The maximum size of memory card that can be used with this device.

512 GB


Ports & interfaces


Ethernet LAN (RJ-45) ports

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1


Security


Password protection

The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure.




Video motion detection




IP address filtering




HTTPS encryption




Alert notification type

E-mail, Push notification


Privacy protection




Motion sensor

Device that detects moving objects, particularly people. A motion detector is often integrated as a component of a system that automatically performs a task or alerts a user of motion in an area. Motion detectors form a vital component of security, automated lighting control, home control, energy efficiency, and other useful systems.




Digest authentication




Management features


Web browser




Cloud-managed




Reset button




Power


Power source type

What the power source is.

DC, PoE


Power consumption (max)

The maximum amount of power used by the device.
.76 W


Power consumption (Power over Ethernet (PoE))
.14 W


DC output voltage



Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

-30 - 60 °C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-40 - 60 °C


Operating relative humidity (H-H)

0 - 95%


Storage relative humidity (H-H)

0 - 95%


Weight & dimensions


Height

The measurement of the product from head to foot or from base to top.

56 mm


Diameter

Distance from one side of a body (circle or sphere) to the other side, measured by a straight line passing through the centre of the body.
.2 cm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

440 g


Packaging content


Number of cameras

The quantity of cameras that product can support.

1


Technical details


Lens mount interface

A lens mount is an interface — mechanical and often also electrical — between a photographic camera body and a lens. It is confined to cameras where the body allows interchangeable lenses, most usually the rangefinder camera, single lens reflex type or any movie camera of 16 mm or higher gauge.

M12
