Tplink

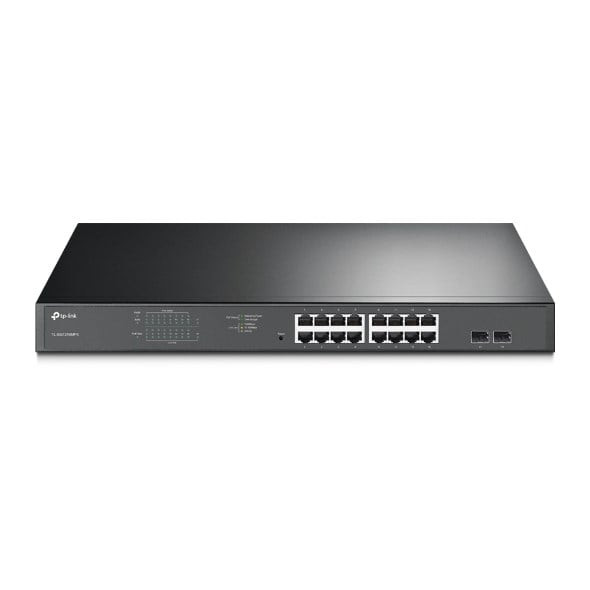

TP-Link JetStream 16-Port Gigabit Easy Smart PoE/PoE+ Switch TL-SG1218MPE
(No reviews yet)
Write a Review
- UPC:
- 6935364086930
- MPN:
- TL-SG1218MPE
- Condition:
- New
- Availability:
- Available with FREE Delivery (usually delivered within 5-7 working days)
Description
Ideal for Surveillance
TL-SG1218MPE complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget is up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.
Intelligent Power Management
When total power consumption excels 192W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
Making Management Easy
TL-SG1218MPE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1218MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
Specs
Management features
Switch type
What switch device has, managed or unmanaged.
Managed
Switch layer
A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things).
L2
Quality of Service (QoS) support
Web-based management
Using a website/web application to manage something.
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
The number of basic switching RJ-45 Ethernet ports (sockets).
Basic switching RJ-45 Ethernet ports type
The type/category of basic switching RJ-45 Ethernet ports (sockets).
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
SFP module slots quantity
2
Network
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
G support
The product can use Oracle 10G, which is a database management system introduced in 2003.
Copper ethernet cabling technology
BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported
Cat3, Cat4, Cat5, Cat5e, Cat6
Port mirroring
Flow control support
Link aggregation
Broadcast storm control
Rate limiting
Auto MDI/MDI-X
A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Auto-negotiation
VLAN support
A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.
Virtual LAN features
Port-based VLAN
Number of VLANs
32
Optical fiber
Fiber ethernet cabling technology
00BASE-X
Data transmission
Switching capacity
The data transfer capacity of the switch per second.
36 Gbit/s
Forwarding rate
23.8 Mpps
MAC address table
The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
8000 entries
Store-and-forward
Number of queues
4
Jumbo frames support
Jumbo frames
9000
Packet buffer memory
4.1 MB
Security
IGMP snooping
Security algorithms
Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.
SNMP, SNMPv2, SNMPv3
Security
Loop protection
Design
Rack mounting
The type of mounting that can position devices in a shelving system (rack).
Form factor
The shape or design of the product.
1U
Product colour
The colour e.g. red, blue, green, black, white.
Black
Number of fans
The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).
2 fan(s)
Power
Power source
What is providing power for the product e.g. mains electricity.
AC
Power supply included
There is a power supply with this product.
AC input voltage
The voltage of the AC electricity that is inputted into the product.
0 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
The maximum amount of power used by the device.
217.22 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Power over Ethernet plus (PoE+) ports quantity
Total Power over Ethernet (PoE) budget
2 W
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 50 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Operating relative humidity (H-H)
- 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
The heat generated by the power supply.
741.15 BTU/h
Weight & dimensions
Width
The measurement or extent of something from side to side.
440 mm
Depth
The distance from the front to the back of something.
0 mm
Height
The measurement of the product from head to foot or from base to top.
44 mm
Packaging content
Cables included
AC
User guide
Rack mount kit
Packaging data
Package width
The distance from one side of the packaging to the other.
250 mm
Package depth
The distance from the front to the back of the packaging.
528 mm
Package height
The distance from the top to the bottom of the packaging.
80 mm
Package weight
Weight of the packaged product.
2.91 kg
Certificates
Certification
CE, FCC, RoHS
Logistics data
Harmonized System (HS) code
85176990
