Tplink

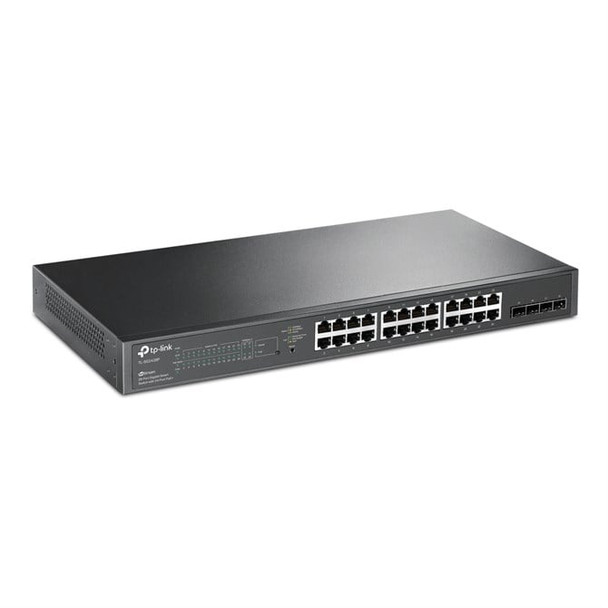

TP-Link JetStream 28-Port Gigabit Smart PoE Switch with 24-Port PoE+ SG2428P
(No reviews yet)
Write a Review
- UPC:
- 6935364030667
- MPN:
- SG2428P
- Condition:
- New
- Availability:
- Available with FREE Delivery (usually delivered within 5-7 working days)
Description
Realize More Possibilities with Omada
JetStream 28-Port Gigabit Smart Switch with 24-Port PoE+
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Specs
Management features
Switch type
What switch device has, managed or unmanaged.
Managed
Switch layer
A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things).
L2/L2+
Quality of Service (QoS) support
Web-based management
Using a website/web application to manage something.
ARP inspection
System event log
MIB support
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
The number of basic switching RJ-45 Ethernet ports (sockets).
24
Basic switching RJ-45 Ethernet ports type
The type/category of basic switching RJ-45 Ethernet ports (sockets).
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
24
SFP module slots quantity
4
Network
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
G support
The product can use Oracle 10G, which is a database management system introduced in 2003.
Copper ethernet cabling technology
BASE-T, 1000BASE-T
Cable types supported
Cat3, Cat4, Cat5, Cat5e
Port mirroring
Flow control support
Link aggregation
Broadcast storm control
Rate limiting
Spanning tree protocol
VLAN support
A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.
Virtual LAN features
MAC address-based VLAN, Protocol-based VLAN, Voice VLAN
Number of VLANs
4000
Optical fiber
Fiber ethernet cabling technology
00BASE-X
Data transmission
Switching capacity
The data transfer capacity of the switch per second.
56 Gbit/s
Forwarding rate
41.7 Mpps
MAC address table
The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
8000 entries
Number of queues
8
Jumbo frames support
Jumbo frames
9000
Packet buffer memory
4.1 MB
Security
DHCP features
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client
Access Control List (ACL)
IGMP snooping
Security algorithms
Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.
HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS
SSH/SSL support
BPDU filtering/protection
Security
IP-MAC-Port binding
Authentication type
Authentification means proving identity to gain access to sometheng. There are various types of authentification exist e.g. access card, password, biometric data.
RADIUS
Queue scheduling algorithms
SP, WRR+SP, Weighted Round Robin (WRR)
Multicast features
Multicast support
Protocols
Management protocols
SNMPv1/v2c/v3, SNTP
Design
Rack mounting
The type of mounting that can position devices in a shelving system (rack).
Form factor
The shape or design of the product.
1U
Product colour
The colour e.g. red, blue, green, black, white.
Black
Number of fans
The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).
2 fan(s)
Performance
Firmware upgradeable
Power
Power source
What is providing power for the product e.g. mains electricity.
AC
Power supply included
There is a power supply with this product.
AC input voltage
The voltage of the AC electricity that is inputted into the product.
0 - 240 V
AC input frequency
50/60 Hz
Power consumption (max)
The maximum amount of power used by the device.
306.9 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Power over Ethernet plus (PoE+) ports quantity
24
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
250 W
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 50 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Operating relative humidity (H-H)
- 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
The heat generated by the power supply.
47.3 BTU/h
Weight & dimensions
Width
The measurement or extent of something from side to side.
440 mm
Depth
The distance from the front to the back of something.
220 mm
Height
The measurement of the product from head to foot or from base to top.
44 mm
Packaging content
Cables included
AC
User guide
Rack mount kit
Packaging data
Package width
The distance from one side of the packaging to the other.
336 mm
Package depth
The distance from the front to the back of the packaging.
528 mm
Package height
The distance from the top to the bottom of the packaging.
0 mm
Package weight
Weight of the packaged product.
3.98 kg
Certificates
Certification
CE, FCC, RoHS
Logistics data
Harmonized System (HS) code
85176990
View AllClose
