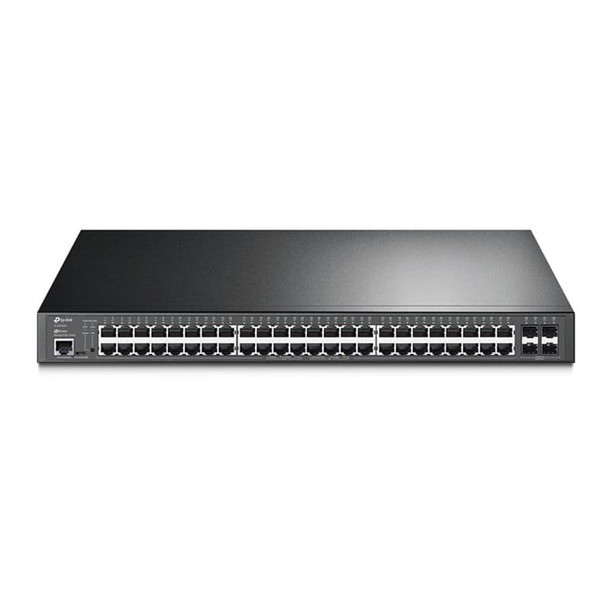

TP-Link JetStream 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+ SG3452P

JetStream 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+

Specs




Management features


Switch type

What switch device has, managed or unmanaged.

Managed


Switch layer

A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things).

L2/L3


Quality of Service (QoS) support




Web-based management

Using a website/web application to manage something.




Cloud-managed




ARP inspection




System event log




MIB support

Yes


Ports & interfaces


Basic switching RJ-45 Ethernet ports quantity

The number of basic switching RJ-45 Ethernet ports (sockets).

48


Basic switching RJ-45 Ethernet ports type

The type/category of basic switching RJ-45 Ethernet ports (sockets).

Gigabit Ethernet (10/100/1000)


SFP module slots quantity

4


Console port

RJ-45/micro-USB


Power connector

AC-in jack


Network


Networking standards

The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x

G support

The product can use Oracle 10G, which is a database management system introduced in 2003.




Port mirroring




IP routing




Policy-based routing




Flow control support




Link aggregation




Broadcast storm control




Rate limiting




Spanning tree protocol




Head-of-line (HOL) blocking




Ethernet LAN data rates

The different speed levels of the Ethernet LAN connection.
,100,1000 Mbit/s


Active link detection




VLAN support

A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.




Virtual LAN features

MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN


Number of VLANs

4000


Data transmission


Switching capacity

The data transfer capacity of the switch per second.
4 Gbit/s


Forwarding rate

77.4 Mpps


MAC address table

The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
000 entries


Store-and-forward




Static route




Number of static routes

48


Jumbo frames support




Jumbo frames

9000


Packet buffer memory
MB


Security


DHCP features

DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping


Access Control List (ACL)




IGMP snooping




SSH/SSL support





Security


Loop protection




BPDU filtering/protection




Authentication

MAC-based authentication, Port-based authentication


Password protection

The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure.




Multicast features


Multicast support




Protocols


Management protocols

SNMPv1/v2c/v3, SNTP


GARP VLAN Registration Protocol (GVRP)




Design


Rack mounting

The type of mounting that can position devices in a shelving system (rack).




Form factor

The shape or design of the product.

1U


Product colour

The colour e.g. red, blue, green, black, white.

Black


Reset button




LED indicators




Number of fans

The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).

3 fan(s)


Power


Power source

What is providing power for the product e.g. mains electricity.

AC


Power supply included

There is a power supply with this product.




AC input voltage

The voltage of the AC electricity that is inputted into the product.
0 - 240 V


AC input frequency

50/60 Hz


Power consumption (max)

The maximum amount of power used by the device.

485.4 W


Power over Ethernet (PoE)


Power over Ethernet (PoE)

The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.




Power over Ethernet plus (PoE+) ports quantity

48


Power over Ethernet (PoE) power per port

30 W


Total Power over Ethernet (PoE) budget

384 W


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 40 °C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-40 - 70 °C


Operating relative humidity (H-H)
- 90%


Storage relative humidity (H-H)

5 - 90%


Heat dissipation

The heat generated by the power supply.
56.19 BTU/h


Weight & dimensions


Width

The measurement or extent of something from side to side.

440 mm


Depth

The distance from the front to the back of something.

330 mm


Height

The measurement of the product from head to foot or from base to top.

44 mm


Packaging content


Cables included

AC


Quick start guide

Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.




Manual




Packaging data


Package type

The type of product package e.g. box.

Box


Package width

The distance from one side of the packaging to the other.

440 mm


Package depth

The distance from the front to the back of the packaging.

528 mm


Package height

The distance from the top to the bottom of the packaging.
0 mm


Package weight

Weight of the packaged product.

6.77 kg


Logistics data


Harmonized System (HS) code

85176990
