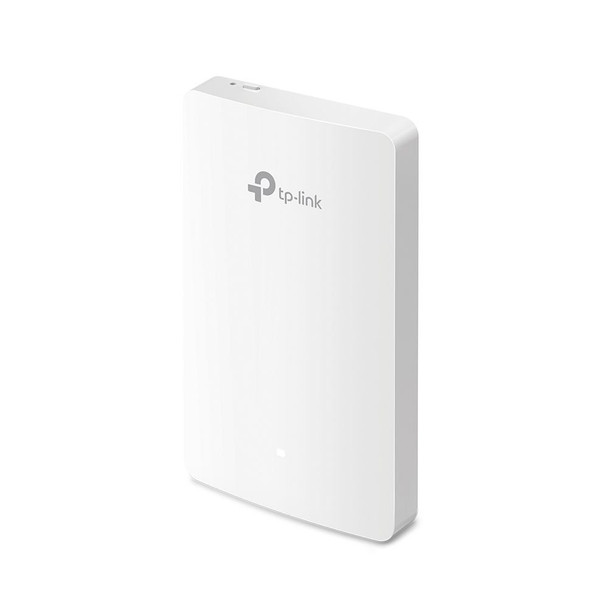

TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point EAP235-WALL

Dedicated Complete, Private Wi-Fi Network in Each Room
An EAP in each room allows guests to enjoy their own private Wi-Fi network that’s fast, delivering a strong signal, and providing corner to corner coverage.

MU-MIMO + Dual-Band: Connect Faster and More
802.11ac wave 2 MU-MIMO technology enables multiple users to access the Internet simultaneously, which largely boosts up your network speed of up to 1,200 Mbps. Capable of transmitting in both 2.4 GHz and 5 GHz wireless band, it provides greater compatibility to connect varieties of devices.

Absolute Thinnest, Inconspicuous Design
The thinnest wall plate AP available—only 15 mm—featuring a sleek, minimalist appearance. Designed to blend in with the décor of hotel rooms, hospitals, offices and school dormitories, to deliver powerful Wi-Fi without clashing with the room.

Effortless Deployment with PoE Powered
With 802.3af/802.3at Power over Ethernet supported there’s no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you’re ready to go.

Quick, Simplified Installation
EAP235-Wall is easy to install, so extra cost, time, or professional knowledge are completely unnecessary.

Full Gigabit Ports to Bridge Network
Equipped with four Gigabit data ports (1 uplink + 3 downlink), one downlink port offering PoE pass-through, to connect multiple devices to your gigabit network. Wired devices like VoIP phones can be powered with no need for extra electrical cables.

Cloud Centralized Management Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Easy Management with the Omada App
Follow configuration instructions on the Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

Specs




Features


2.4 GHz




5 GHz




6 GHz




Maximum data transfer rate

The maximum speed with which data can be transmitted from one device to another.
67 Mbit/s


Maximum data transfer rate (2.4 GHz)

300 Mbit/s


Maximum data transfer rate (5 GHz)

867 Mbit/s


Ethernet LAN data rates

The different speed levels of the Ethernet LAN connection.
, 100, 1000 Mbit/s


Frequency band

A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones.

2.4 - 5 GHz


Networking standards

The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at


Cabling technology

Type of cable technology performance.
/100/1000Base-T(X)


Automatic channel selection




Automatic channel scanning




MIMO




MIMO type

Multi User MIMO


Wi-Fi Multimedia (WMM)/(WME)




VLAN support

A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.




Virtual LAN features

Port-based VLAN, VLAN mapping


Rate limiting




Wireless isolation




Band steering




Quality of Service (QoS) support




BeamForming




Transmitting power (CE)
- 23 dBm


Transmitting power (FCC)

21 dBm


Security


Security algorithms

Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.

64-bit WEP, 128-bit WEP, 152-bit WEP, 802.1x RADIUS, HTTPS, SNMP, SNMPv3, SSH, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-Enterprise, WPA2-PSK


MAC address filtering

Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists.




Service Set Identifier (SSID) features

Multiple SSIDs


Number of SSID supported



Remote Authentication Dial-In User Service (RADIUS)




Access Control List (ACL)




Protocols


Universal Plug and Play (UPnP)




Management features


Web-based management

Using a website/web application to manage something.




Syslog




Ports & interfaces


Ethernet LAN (RJ-45) ports

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

4



Ports & interfaces


WAN connection

A wide area network (WAN) is a network that covers a broad area (i.e. any telecommunications network that links across metropolitan, regional, or national boundaries such as the Internet) using private or public network transports. Business and government entities utilize WANs to relay data among employees, clients, buyers, and suppliers from various geographical locations.

Ethernet (RJ-45)


Power


Power over Ethernet (PoE)

The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.




Power over Ethernet (PoE) type supported

Active PoE, Passive PoE


Power consumption (typical)

Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.

24.4 W


Design


Placement

Where the product can be placed e.g. floor, wall.

Wall


Product colour

The colour e.g. red, blue, green, black, white.

White


Cable lock slot

Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.




Reset button




LED indicators

LAN, Power, Status, WAN, WLAN


Antenna


Antenna type

Type of antenna, also known an aerial, e.g. external, internal.

Internal


Antenna features

Integrated antenna


Antennas quantity

2


Antenna gain level (max)

Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction.

4 dBi


Performance


Compatible operating systems

List of desktop operating systems tested as compatible with this product.

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10


Certificates


Compliance certificates

CE, Federal Communications Commission (FCC), RoHS


Weight & dimensions


Width

The measurement or extent of something from side to side.
3 mm


Depth

The distance from the front to the back of something.

86 mm


Height

The measurement of the product from head to foot or from base to top.
mm


Packaging data


Package width

The distance from one side of the packaging to the other.
7 mm


Package depth

The distance from the front to the back of the packaging.
4 mm


Package height

The distance from the top to the bottom of the packaging.

33 mm


Package weight

Weight of the packaged product.

300 g


Package type

The type of product package e.g. box.

Box


Packaging content


Quantity per pack

1 pc(s)


Mounting kit




Quick start guide

Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.




Operational conditions


Operating relative humidity (H-H)
- 90%


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 40 °C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-40 - 70 °C


Storage relative humidity (H-H)

5 - 90%


Sustainability


Sustainability compliance




Logistics data


Harmonized System (HS) code

85176990
