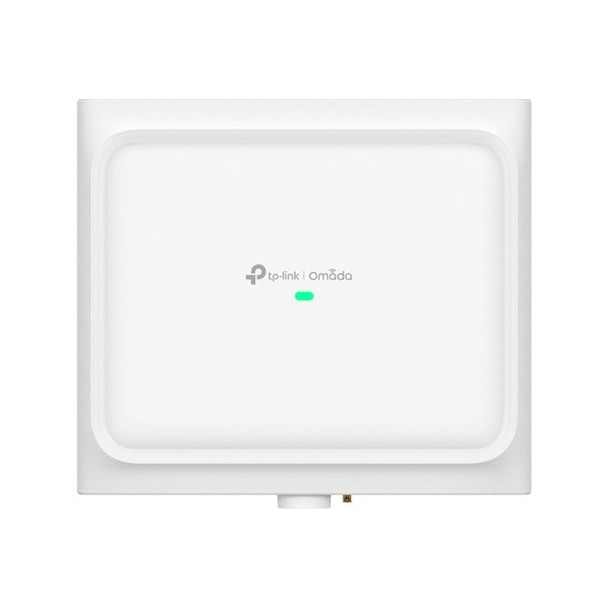

TP-Link Omada AX3000 Indoor/Outdoor WiFi 6 Access Point EAP65D3OUTDOOR

Specs




Features


2.4 GHz




5 GHz




6 GHz




Maximum data transfer rate

The maximum speed with which data can be transmitted from one device to another.

3000 Mbit/s


Maximum data transfer rate (2.4 GHz)

574 Mbit/s


Maximum data transfer rate (5 GHz)

2402 Mbit/s


Ethernet LAN data rates

The different speed levels of the Ethernet LAN connection.
, 100, 1000 Mbit/s


Bluetooth

Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.




Automatic channel selection




MIMO




MIMO type

Multi User MIMO


Band steering




Airtime Fairness (ATF)




Security


Security algorithms

Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.

SNMP, SNMPv2, SNMPv3


MAC address filtering

Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists.




Remote Authentication Dial-In User Service (RADIUS)




Management features


Web-based management

Using a website/web application to manage something.





Ports & interfaces


Ethernet LAN (RJ-45) ports

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1


Power


Power over Ethernet (PoE)

The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.




Power over Ethernet (PoE) type supported

Passive PoE


AC input voltage

The voltage of the AC electricity that is inputted into the product.

48 V


Design


Placement

Where the product can be placed e.g. floor, wall.

Ceiling, Wall


Product colour

The colour e.g. red, blue, green, black, white.

White


Antenna


Antenna type

Type of antenna, also known an aerial, e.g. external, internal.

Internal


Weight & dimensions


Width

The measurement or extent of something from side to side.
7.5 mm


Depth

The distance from the front to the back of something.

58 mm


Height

The measurement of the product from head to foot or from base to top.

230 mm


Packaging content


Quantity per pack

1 pc(s)


Mounting kit




Quick start guide

Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.




Other features


Horizontal beam width

30°


Vertical beam width

30°
