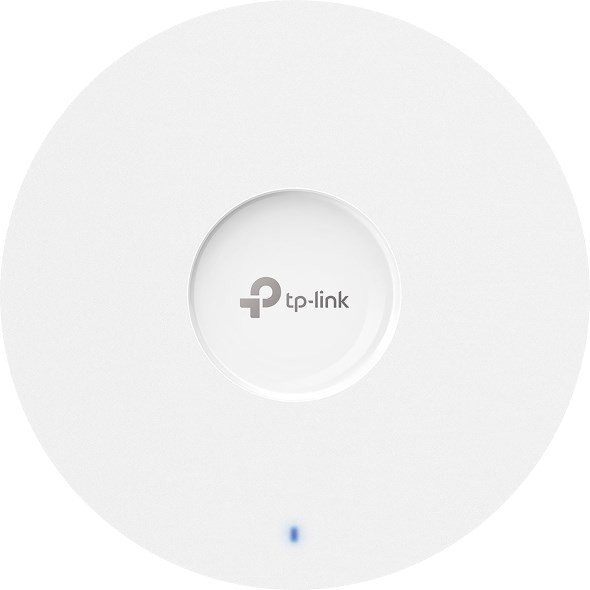

TP-Link Omada AX6000 Ceiling Mount WiFi 6 Access Point EAP683UR

Specs




Features


2.4 GHz




5 GHz




6 GHz




Maximum data transfer rate

The maximum speed with which data can be transmitted from one device to another.

6000 Mbit/s


Maximum data transfer rate (2.4 GHz)
48 Mbit/s


Maximum data transfer rate (5 GHz)

4804 Mbit/s


Ethernet LAN data rates

The different speed levels of the Ethernet LAN connection.
, 100, 1000, 2500 Mbit/s


Frequency band

A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones.

2.4 - 6 GHz


Networking standards

The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at


Number of users

The number of people that use or can use this product.

510 user(s)


Automatic channel selection




Automatic channel scanning




MIMO




MIMO type

Multi User MIMO


Fast roaming




VLAN support

A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.




Rate limiting




Band steering




Airtime Fairness (ATF)




Quality of Service (QoS) support




BeamForming




Security


Security algorithms

Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.

HTTPS, SNMP, SNMPv2, SNMPv3, SSH


MAC address filtering

Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists.




Service Set Identifier (SSID) features

Multiple SSIDs


Access Control List (ACL)




Management features


Syslog





Management features


Firmware upgradeable




Ports & interfaces


Ethernet LAN (RJ-45) ports

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1


DC-in jack

The socket/plug where the DC electricity supply connects to the device.




Power


Power over Ethernet (PoE)

The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.




DC voltage range
V


Design


Placement

Where the product can be placed e.g. floor, wall.

Ceiling, Wall


Product colour

The colour e.g. red, blue, green, black, white.

White


Reset button




LED indicators




Antenna


Antenna type

Type of antenna, also known an aerial, e.g. external, internal.

Internal


Antenna direction type

Omni-directional


Antenna gain level (max)

Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction.

5 dBi


Weight & dimensions


Width

The measurement or extent of something from side to side.

220 mm


Depth

The distance from the front to the back of something.

220 mm


Height

The measurement of the product from head to foot or from base to top.

32.5 mm


Packaging data


Package type

The type of product package e.g. box.

Box


Packaging content


Quantity per pack

1 pc(s)


Mounting kit




Quick start guide

Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.




Operational conditions


Operating relative humidity (H-H)
- 90%


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 40 °C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-40 - 70 °C


Storage relative humidity (H-H)

5 - 90%
