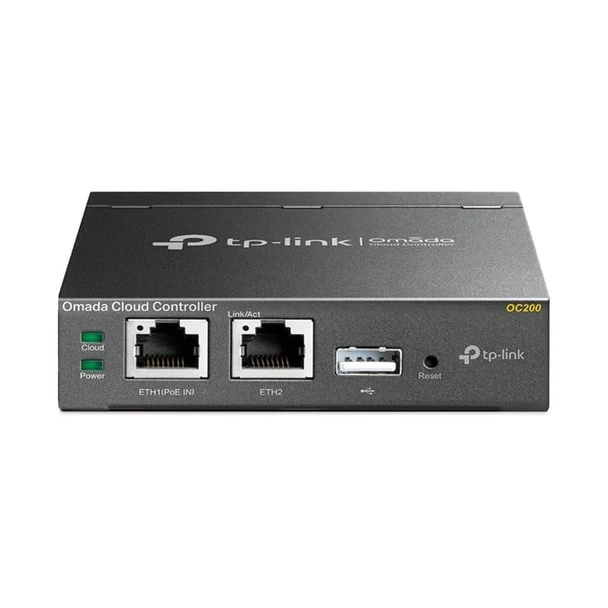

TP-Link Omada Cloud Controller OC200

Dedicated In Network Centralized Management
The OC200 Omada Cloud Controller delicate to provide centralized management for the whole Omada network. Monitor statistics in real-time, view a graphical analysis of network traffic, create a captive portal, upgrade and reboot your system, and easily scale your network to boost your business.

Free Cloud Management – Anywhere, Anytime
Omada offers free cloud access to its centralized management platform. Take your network with you, wherever you go.

Industry Leading Hardware Design
Equipped with an advanced hardware design and the latest chipset, OC200 has the impressive processing power to support the massive management of your business network.

Guest Network with Facebook Wi-Fi and SMS Login
Visitors have access to secure Wi-Fi with captive portal and wireless isolation technology. Newly added SMS authentication simplifies the connection process, while Facebook authentication raises the social media profile of your business.

Even More Convenient with Omada App
Remotely access and configure the OC200 from the convenience of your smartphone, wherever you are in the world.

Specs




Design


Product colour

The colour e.g. red, blue, green, black, white.

Black


LED indicators




Performance


Control display unit




Built-in processor

Whether or not a processor is built into the device.




Processor frequency

The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time.
00 MHz


Number of processors installed

Number of processors in the product.

1


Internal memory

The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.
24 MB


Internal memory type

The type of internal memory such as RAM, GDDR5.

DDR3


Flash memory

4000 MB


Network


Ethernet LAN data rates

The different speed levels of the Ethernet LAN connection.
, 100 Mbit/s


Networking standards

The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.3af, IEEE 802.3at


Security


MAC address filtering

Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists.




Security algorithms

Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.

SSID, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK


VLAN support

A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.




Ports & interfaces


USB 2.0 ports quantity

Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.

1


Ethernet LAN (RJ-45) ports

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

2


Management features


Management platform

L3


Web-based management

Using a website/web application to manage something.




Reset button




Syslog




Power


Power consumption (typical)

Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.

5 W



Power


Input voltage

The voltage (V) which is required to power the product.

5 V


Input current

1 A


Power over Ethernet (PoE)

The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.




DC input voltage

5 V


Software


Compatible operating systems

List of desktop operating systems tested as compatible with this product.

Windows10, 8, 7,Vista, XP; MAC OS; NetWare, UNIX; Linux


Weight & dimensions


Width

The measurement or extent of something from side to side.

99.8 mm


Depth

The distance from the front to the back of something.

98 mm


Height

The measurement of the product from head to foot or from base to top.

25 mm


Packaging data


Package width

The distance from one side of the packaging to the other.
5 mm


Package depth

The distance from the front to the back of the packaging.
8 mm


Package height

The distance from the top to the bottom of the packaging.

70 mm


Packaging content


Cables included

LAN (RJ-45)


Quick installation guide




Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 40 °C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-40 - 70 °C


Operating relative humidity (H-H)
- 90%


Storage relative humidity (H-H)

5 - 90%


Certificates


Certification

CE, FCC, RoHS


Logistics data


Harmonized System (HS) code

85176990
