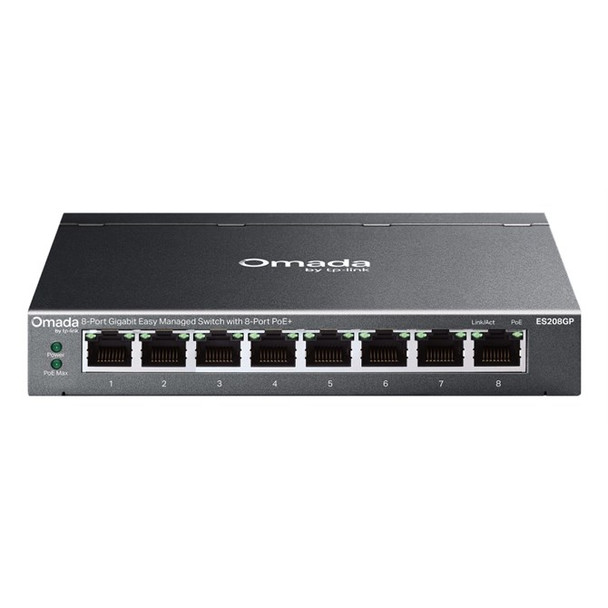

TP-Link Omada ES208GP Network Switch Managed L2 Gigabit Ethernet 10/100/1000 Pow ES208GP

Specs




Management features


Switch type

What switch device has, managed or unmanaged.

Managed


Switch layer

A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things).

L2


Quality of Service (QoS) support




Web-based management

Using a website/web application to manage something.




Cloud-managed




Ports & interfaces


Basic switching RJ-45 Ethernet ports quantity

The number of basic switching RJ-45 Ethernet ports (sockets).

8


Basic switching RJ-45 Ethernet ports type

The type/category of basic switching RJ-45 Ethernet ports (sockets).

Gigabit Ethernet (10/100/1000)


Network


Networking standards

The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

G support

The product can use Oracle 10G, which is a database management system introduced in 2003.




Port mirroring




Flow control support




Link aggregation




Broadcast storm control




Auto MDI/MDI-X

A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.




Ethernet LAN data rates

The different speed levels of the Ethernet LAN connection.
,100,1000 Mbit/s


Auto-negotiation




VLAN support

A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.




Virtual LAN features

MTU VLAN, Port-based VLAN, Tagged VLAN


Number of VLANs

4000


Optical fiber


Transmission distance (max)

0.25 km


Data transmission


Switching capacity

The data transfer capacity of the switch per second.
Gbit/s


Forwarding rate
.904 Mpps


MAC address table

The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.

8000 entries


Store-and-forward




Jumbo frames support




Jumbo frames
000


Packet buffer memory

0.5 MB



Security


DHCP features

DHCP client


IGMP snooping




Loop protection




Multicast features


Multicast support




Design


Rack mounting

The type of mounting that can position devices in a shelving system (rack).




Form factor

The shape or design of the product.

DIN rail


Product colour

The colour e.g. red, blue, green, black, white.

Black


LED indicators




Power


Power source

What is providing power for the product e.g. mains electricity.

DC


DC input voltage

53 V


Input current

1.31 A


Power over Ethernet (PoE)


Power over Ethernet (PoE)

The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.




Power over Ethernet (PoE) type supported

PoE+


Power over Ethernet plus (PoE+) ports quantity

8


Total Power over Ethernet (PoE) budget

64 W


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 40 -C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-40 - 70 -C


Operating relative humidity (H-H)
- 90%


Storage relative humidity (H-H)

5 - 90%


Weight & dimensions


Width

The measurement or extent of something from side to side.
8 mm


Depth

The distance from the front to the back of something.
0.7 mm


Height

The measurement of the product from head to foot or from base to top.

25.4 mm


Packaging content


Cables included

Power


Quick start guide

Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.




Certificates


Compliance certificates

CE, Federal Communications Commission (FCC), RoHS
