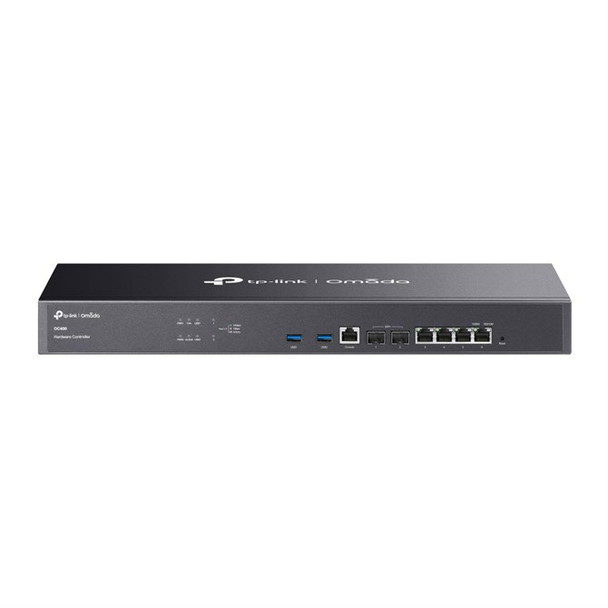

TP-Link Omada Hardware Controller OC400

Centralized Management
The Omada hardware controller (OC400) for the Omada Software Defined Networking (SDN) platform, supports centralized management for up to 1,000 Omada access points, 200 Omada switches, and 100 Omada routers.* Enjoy cloud service with no license fees with the use of OC400.

Specs




Design


Product colour

The colour e.g. red, blue, green, black, white.

Grey


LED indicators




Performance


Control display unit




Built-in processor

Whether or not a processor is built into the device.




Internal memory

The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.

8 MB


Internal memory type

The type of internal memory such as RAM, GDDR5.

DDR4


SSD capacity

The Solid State Drive's data storage capacity.

32 GB


Flash memory

4 MB


Network


Ethernet LAN data rates

The different speed levels of the Ethernet LAN connection.
00, 10000 Mbit/s


Ports & interfaces


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2


Number of console ports

1


Ethernet LAN (RJ-45) ports

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

4


DC-in jack

The socket/plug where the DC electricity supply connects to the device.




SFP+ ports quantity

2


Management features


Management platform

Omada App


Performance management

• Up to 1,000 Omada access points, 200 Omada switches, and 100 Omada routers* • Up to 30,000 clients


Reset button





Power


Input voltage

The voltage (V) which is required to power the product.
0 - 240 V


Input frequency

The frequency (Hz) which is required to power the product.

50/60 Hz


Weight & dimensions


Width

The measurement or extent of something from side to side.

440 mm


Depth

The distance from the front to the back of something.
0 mm


Height

The measurement of the product from head to foot or from base to top.

44 mm


Packaging content


Cables included

LAN (RJ-45), Power


Quick installation guide




Packaging content

• Omada Hardware Controller OC400 • Quick Installation Guide • Ethernet Cable • Power Cord • Rackmount Kit


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 40 °C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-40 - 70 °C


Operating relative humidity (H-H)
- 90%


Storage relative humidity (H-H)

5 - 90%


Sustainability


Sustainability compliance




Certificates


Compliance certificates

CE, Federal Communications Commission (FCC), RoHS
