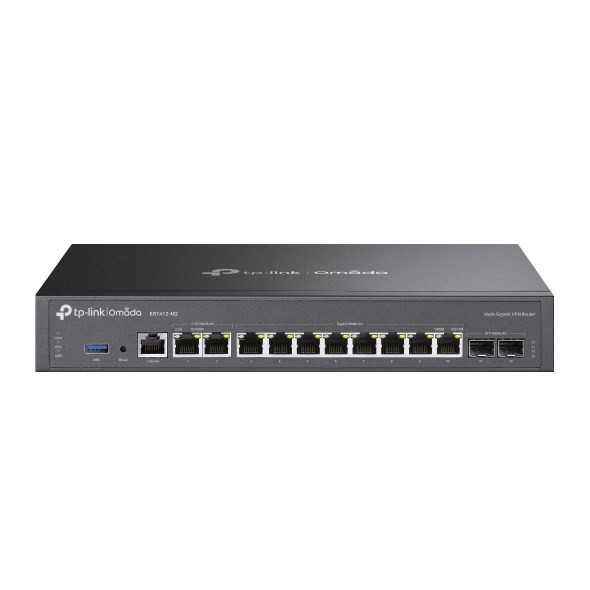

TP-Link Omada Multi-Gigabit VPN Router ER7412-M2

Omada Multi-Gigabit VPN Router

- 2× 2.5Gbps WAN/LAN RJ45 Ports
- 10× Gigabit WAN/LAN Ports (2× SFP, 8× RJ45)
- Load Balancing on up to 11 WAN Ports
- Quad-Core 2.0 GHz CPU
- Centralized Cloud Management
- SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN
- Multi-Net DHCP
- DPI & IPS/IDS

Engineered for Dense Environments, Powered by
Dual 2.5 Gbps Ports and Quad-Core 2.0 GHz CPU
Easily build a multi-gigabit network for schools, hotels, and offices.

Up to 11 WAN Ports & One USB WAN for Mobile Broadband

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

High-Security and High-Performance VPN
SSL/ IPSec / GRE / WireGuard / PPTP / L2TP VPN & OpenVPN easily build secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study from home.

Abundant Security Features

DPI (Deep Packet Inspection)
Easily specify internet access rights and strategies via DPI (Deep Packet Inspection), IP/MAC/URL Filtering and Access Control List (ACL).

IDS/IPS
The integrated IDS/IPS engine bolsters threat detection and defense. It is constantly protected via the built-in attack prevention signature database with 7000+ signature rules that can be updated regularly.

DoS/DDoS Protection
Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats.

Specs




WAN connection


Ethernet WAN




DSL WAN

Whether or not the product features a DSL WAN (Wide Area Network) connection option.




SIM card slot

Whether the device features a SIM card slot.




3G/4G USB modem compatibility




SFP WAN




Network


Networking standards

The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z


Ethernet interface type

2.5 Gigabit Ethernet, Gigabit Ethernet


Ethernet LAN data rates

The different speed levels of the Ethernet LAN connection.
, 100, 1000, 2500 Mbit/s


Static route




VLAN support

A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.




Management features


Web-based management

Using a website/web application to manage something.




Universal Plug and Play (UPnP)




Reset button




Ports & interfaces


Ethernet LAN (RJ-45) ports

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

7


WAN/Ethernet LAN ports quantity

2


SFP module slots quantity

2


Number of console ports

1


USB ports quantity

1


Protocols


DMZ support




DHCP server

A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one.




Security


Security algorithms

Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.
8-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, SHA-2, SHA-384, SHA-512


URL filtering




DoS attack prevention




ARP attack prevention




ICMP attack prevention




Access Control List (ACL)





Security


Network address translation (NAT)




VPN tunnels quantity

80


Certificates


Compliance certificates

CE, Federal Communications Commission (FCC)


Packaging content


Cables included

AC, LAN (RJ-45)


Quick start guide

Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.




Features


Flash memory
8 MB


Internal memory

The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.
24 MB


Internal memory type

The type of internal memory such as RAM, GDDR5.

DDR4


Windows operating systems supported

Windows vesions wich can be used with the device.

Windows 10, Windows 11, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP


Mac operating systems supported

Mac operating systems e.g. OS X can be used with the device.




Linux operating systems supported

8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)




Design


Product colour

The colour e.g. red, blue, green, black, white.

Black


Rack mounting

The type of mounting that can position devices in a shelving system (rack).




Power


Power consumption (max)

The maximum amount of power used by the device.
.5 W


AC input voltage

The voltage of the AC electricity that is inputted into the product.
0 - 240 V


AC input frequency

50/60 Hz


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 45 °C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-40 - 70 °C


Operating relative humidity (H-H)
- 90%


Storage relative humidity (H-H)

5 - 90%


Weight & dimensions


Width

The measurement or extent of something from side to side.

294 mm


Depth

The distance from the front to the back of something.
0 mm


Height

The measurement of the product from head to foot or from base to top.

44 mm
