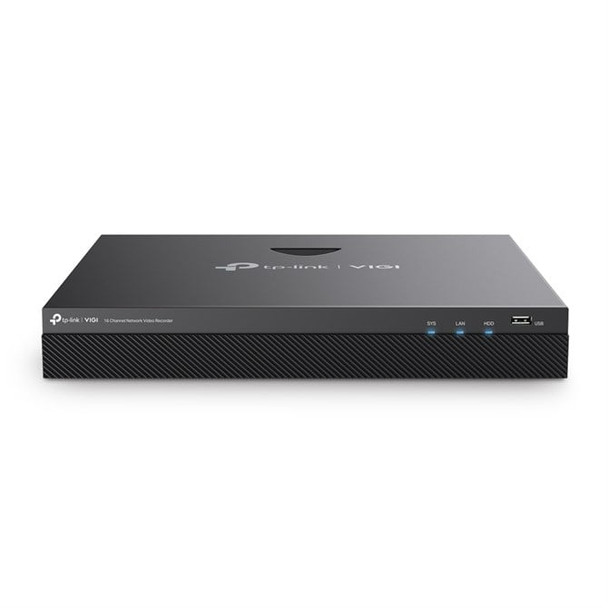

TP-Link VIGI NVR2016H Network Video Recorder Black VIGINVR2016H

Security Never Shuts Down

Every Angle All on One Screen
4K HDMI Video Output & 16MP Decoding Capacity
Sharp image definition up to 8MP (4K) ensures you capture every detail. 8-ch@2MP decoding capacity allows you to enjoy more-channels live view and playback at the same time.†

Reviewing Footage is Faster than Ever -Channel Simultaneous Playback*
Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.

More Compression. More Savings. More Quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

No Need to Check Long Compatibility Lists
ONVIF Ensures Compatibility
Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility. ?

Plug & Play.
Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.

Security for Every Hour and Every Day
27/4 Continuous Recording
Automatically and continuously stores up to 20 TB of footage from connected cameras to secure your data for quick and convenient access.

Two-Way Audio
With voice intercom support, scare off any potential thieves or intruders from wherever you are.

Remote Management
Take full control over your security anytime and anywhere on the VIGI app or client.

Live Views and Real-Time Alerts
Easily check your business security via 24/7 live views. Get notifications as soon as the cameras detect something abnormal.

Easy & Smart Playback
Quickly review and locate certain video clips by event, vehicle, person, time, and more. This will greatly improve event backtracking efficiency and reduce labor costs.

Customized Monitoring Patterns
Based on your monitoring needs, you can freely preset motion zones, adjust the rotation angle, set zoom in & out, customize patrol routes, control patrol routes, and more.

Four-Way Management
Flexibly manage your cameras via the web UI, NVR UI, VIGI app, and VIGI Security Manager for ease and convenience.

One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

Specs




Performance


Video input channels

The number of channels for video input that the device features.
channels


Number of simultaneously playbacked channels
channels


Video recording modes

720p, 1080p


Maximum resolution

The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.

3840 x 2160 pixels


Supported resolutions

HDMI Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz, 3840x2160/30Hz VGA Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz


Video motion detection




Audio formats supported

The audio formats which this device or software can read/use e.g. MP3, MP4.

G.711 A-law, G.711 ?-law, G.726


Video formats supported

The type of video formats that can be used by this device.

H.264, H.264+, H.265, H.265+


Playback modes

Digital zoom, Fast play, Forward, Full screen, Pause, Play, Stop


Playback controls




Maximum frame rate

This is the maximum frame rate, also known as frame frequency and frames per second (FPS). It is the frequency (rate) at which an imaging device produces unique consecutive images called frames. The term applies equally well to film and video cameras, computer graphics, and motion capture systems. Frame rate is most often expressed in frames per second (FPS) and is also expressed in progressive scan monitors as hertz (Hz).

30 fps


Input bandwidth

80 Mbit/s


Output bandwidth

60 Mbit/s


Recording modes

The different ways in which this device can record.

Manual, Schedule


Wireless LAN features


Wi-Fi

Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.




Hard drive


HDD capacity

The maximum storage capacity of the hard disk, usually measured in bytes e.g. GB.

0 GB


Number of HDDs supported

The total number of hard drives that can be used in/with this product.

2


Maximum storage capacity

The maximum amount of data that can be stored in the device.
TB


HDD interface

The way that a hard disk drive (HDD) is connected to the rest of the computer through a 'bus' such as ATA or SCSI.

SATA


Ports & interfaces


Ethernet LAN (RJ-45) ports

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1


Ethernet LAN data rates

The different speed levels of the Ethernet LAN connection.
, 100 Mbit/s


HDMI ports quantity

The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.

1


VGA (D-Sub) output ports

1


USB 2.0 ports quantity

Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.

2



Ports & interfaces


eSATA ports quantity

The number of ports (interfaces) for eSATA. eSATA is a a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives.

1


Internal SATA ports quantity

2


eSATA




Line-in




Audio output

The type of audio output that the device produces, and the connector(s).

1


DC-in jack

The socket/plug where the DC electricity supply connects to the device.




Supported network protocols

Network protocols tested as compatible with this product e.g. FTP,HTML, POP.

UPnP (Plug and Play), NTP (Network Timing)


Features


Reset button




Product colour

The colour e.g. red, blue, green, black, white.

Black


Certification

CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI


Power


Power consumption (max)

The maximum amount of power used by the device.

24.16 W


Output current

3.3 A


Output voltage
V


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

-10 - 55 °C


Operating relative humidity (H-H)
- 90%


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-40 - 70 °C


Storage relative humidity (H-H)
- 90%


Weight & dimensions


Width

The measurement or extent of something from side to side.

330 mm


Depth

The distance from the front to the back of something.

285 mm


Height

The measurement of the product from head to foot or from base to top.

45 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

1.9 kg


Package weight

Weight of the packaged product.

3.2 kg
