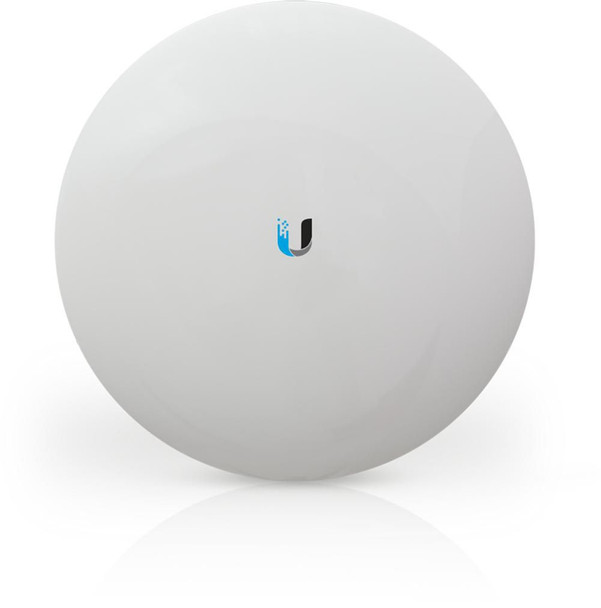

Ubiquiti Networks NBE-5AC-GEN2 5GHz airMAX AC NanoBeam NBE-5AC-GEN2

5 Ghz, 450 Mbps, 19 dBi, 10/100/1000 Ethernet, 128 MB DDR2, 8 MB Flash, 1.5:1 VSWR, 189 x 189 x 125 mm
Incorporating innovative industrial design with proprietary airMAX ac technology, the NanoBeam AC is ideal for CPE deployments requiring maximum performance from the smallest possible footprint.

Management Wi-Fi Radio
The NanoBeam AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Improved Surge Protection
The NanoBeam AC features enhanced protection against ESD events.

Superior Processing
Ubiquiti's airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

Incredible Antenna “Beam” Performance
The form factor of the NanoBeam AC features the highest gain for its size. The NanoBeam AC’s excellent beam directivity provides the best performance in high-noise environments.

Performance Breakthrough
airMAX ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.

Advanced Software Technology
Ubiquiti’s airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

Plug and Play Installation
The NanoBeam AC mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment. No screws are required for pole-mounting, and only a single wall screw (not included) is required for wall-mounting.

Now with airOS8
airOS®8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Specifications
Antenna
Antenna gain level (max)
19 dBi

Certificates
Certification
CE, FCC, IC, RoHS

Data transmission
Maximum data transfer rate
450 Mbit/s

Maximum transfer distance
15000 m

Features
Internal memory
128 MB

LED indicators
LAN, Power, Signal strength

Material
Plastic

Mounting type
Pole/Wall

Product colour
White

Product type
Network bridge

Reset button
Y

Surge protection
Y

Management features
Web-based management
Y

Memory
Flash memory
8 MB

RAM capacity
128 MB

RAM type
DDR2

Network
Ethernet LAN
Y

Ethernet LAN data rates
10, 100, 1000

Ethernet LAN interface type
Gigabit Ethernet

Operational conditions
Operating relative humidity (H-H)
5 - 95 %

Operating temperature (T-T)
-40 - 80 °C

Operating temperature (T-T)
-40 - 176 °F

Package dimensions
Depth
22.5 cm

Gross Weight
1.118 kg

Height
9.8 cm

Width
24.1 cm

Packaging content
Cables included
AC

Mounting bracket(s) included
Y

PoE+ Injector(s)
Y

Packaging data
Quantity per pack
1 pc(s)

Ports & interfaces
Ethernet LAN
Y

Ethernet LAN (RJ-45) ports
2

Power
DC output current
0.5 A

DC output voltage
24 V

Power consumption (max)
8.5 Watt

Power over Ethernet (PoE)
Y

Power source type
PoE

Processor
Processor family
Atheros

Processor frequency
720 MHz

Processor model
MIPS 74Kc

Product dimensions
Depth (product,cm)
12.5 cm

Height (product,cm)
18.9 cm

Net Weight (Product, kg)
0.53 kg

Product Width
18.9 cm

Security
Security algorithms
WPA2

Technical details
Sustainability certificates
CE, RoHS

Vendor information
Brand Name
Ubiquiti Networks

Warranty
2 Year(s)

Weight & dimensions
Dimensions (WxDxH)
189 x 189 x 125 mm

Wireless LAN features
Frequency band
5.15-5.875 GHz

Modulation
16-QAM, 64-QAM, 256-QAM, BPSK, QPSK

Wi-Fi
Y


Package Contents
NanoBeam5ac
Ball Joint Mount
Lock Ring
Metal Strap
Gigabit PoE Adapter (24V, 0.5A)
Power Cord
Quick Start
