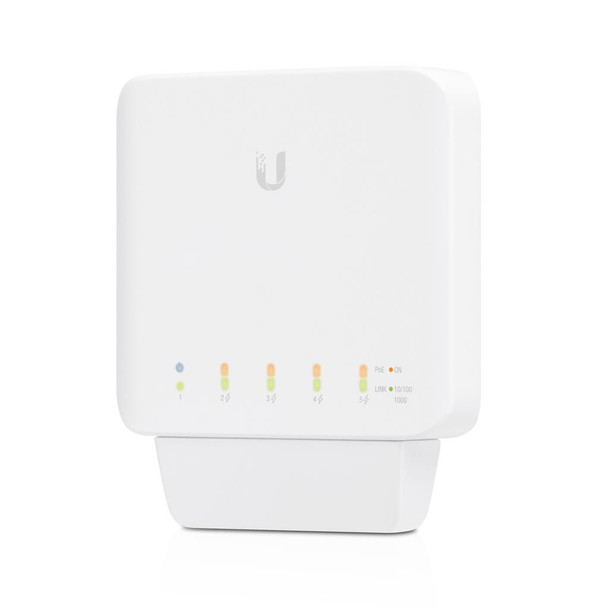

Ubiquiti Networks USW-FLEX-3 UniFi Switch Flex 3-pack USW-FLEX-3

PoE Flexibility
The USW-Flex supports a maximum PoE output budget of 46W when powered by 60W 802.3bt PoE++. Four ports offer auto-sensing 802.3af PoE output to power multiple devices on the network.

Versatile Mounting
The USW-Flex can be installed horizontally or vertically making it ideal for desktop, magnetic wall-mount, and pole-mount installations.

Indoor/Outdoor Design
The USW-Flex is designed for indoor or outdoor use. With its weatherproof housing and versatile mounting options, the USW-Flex provides both flexibility and durability for environments with extreme temperature variations

Compatible Products
The USW-Flex powers a variety of products, including the UniFi Video Camera G3 Flex, UniFi Video Camera G4 Pro, and UniFi AC Mesh AP, which use 802.3af PoE. To enable its maximum power budget of 46W, the USW-Flex can be powered by the USW-Industrial switch, which provides 60W of 802.3bt PoE++.

Seamless Integration
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.

Data transmission



Jumbo frames support



Yes


Design



Certification



CE, FCC, IC


International Protection (IP) code



IP55


LED indicators



Activity, Link, PoE, Status


Product colour



White


Rack mounting



No


Wall mountable



Yes


Logistics data



Harmonized System (HS) code



85176990


Management features



Switch layer



L2


Switch type



Managed


Network



10G support



No


Auto MDI/MDI-X



Yes


Full duplex



Yes


Networking standards



IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt


VLAN support



Yes


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



-40 - 55 �C


Package dimensions



Gross Weight (Package, kg)



1.422 kg


Performance



Firmware upgradeable



Yes


Harmonized System (HS) code



85176990


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



5


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Power



Power consumption (max)



5 Watt


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Power over Ethernet (PoE) ports quantity



4


Power over Ethernet (PoE) power per port



15.4 Watt


Power over Ethernet (PoE) voltage



57 V


Total Power over Ethernet (PoE) budget



46 Watt


Product dimensions



Net Weight (Product, kg)



0.69 kg


Product Depth



10.71 cm


Product Height



2.8 cm


Product Width



12.25 cm


Vendor information



Brand Name


Ubiquiti


Warranty



2 Year(s)
