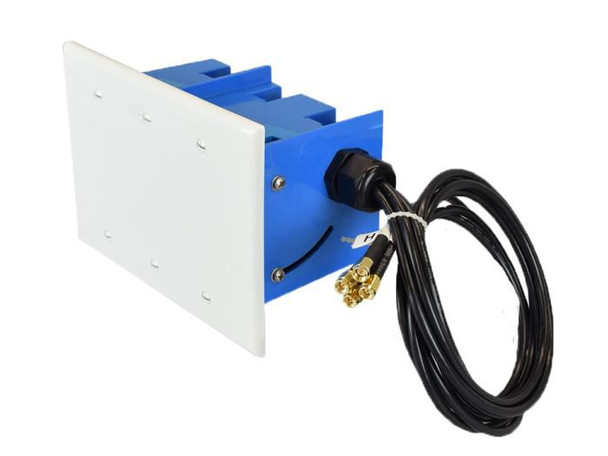

Ventev M040030D33620WS Junction Box WiFi Antenn M040030D33620WS

Ventev�s TerraWave 2.4/5 GHz 4-Port Wall Junction Box Wi-Fi Antenna is concealed within a standard three-gang electrical box. The antenna�s cover plate looks like a standard junction box cover, providing building managers, IT network operators, and building architects with an aesthetically appealing Wi-Fi antenna that will blend into existing room d�cor for �out of sight� coverage and capacity. The antenna is designed to be installed within a dry wall cut-out where the 6� leads can connect to a nearby access point. The directional antenna provides 0� 45 degree down tilt for excellent coverage and capacity in one or more rooms.

Features



Antenna connector type



RP-SMA


Antenna type



Directional antenna


Mounting



Wall


Power handling



20 Watt


Product colour



Blue, White


Purpose



Indoor


Package dimensions



Depth (package,cm)



70.97 cm


Gross Weight (Package, kg)



0.31 kg


Height (package,cm)



45.16 cm


Width (package,cm)



70.97 cm


Packaging content



Quantity



1


Quantity per pack



1 pc(s)


Performance



Antenna gain level (max)



6 dBi


Frequency band



2.4 - 5 GHz


Horizontal beam width



75 �


Vertical beam width



75 �


Product dimensions



Net Weight (Product, kg)



0.21 kg


Product Depth



27.94 cm


Product Height



17.78 cm


Product Width



27.94 cm


Vendor information



Brand Name


Ventev


Warranty



2 Year(s)
