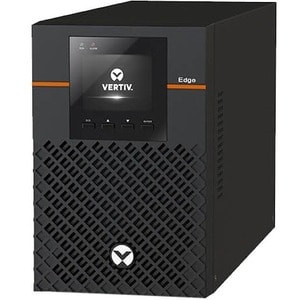

Vertiv Edge Line Interactive Ups 1Kva 230V Tower EDGE-1000IMT

Vertiv EDGE Line Interactive UPS 1KVA 230V Tower The Vertiv Edge uninterruptible power supply (UPS) is designed to protect server and networking equipment in distributed and Edge IT applications. This 1000VA UPS mini-tower offers powerful and reliable protection from downtime and damage caused by power spikes, swells and brownouts. Automatic Voltage Regulation (AVR) extends battery life and safeguards critical equipment. With sine wave output, this line interactive UPS ensures availability of network closets and Edge data centers. It operates at up to 98% efficiency in normal operation mode, providing energy savings. Add optional Vertiv Intellislot SNMP/Webcards for remote power management and OS's shutdown with free Vertiv Power Assist software. The Edge family has a wide range of power ratings, from 500VA up to 3000VA and is available in multiple form factors: mini-tower, 1U rack and rack/tower. It is easy to install, configure and operate and comes with intuitive, color LCD screen. It has a standard 3-year Vertiv UPS warranty. More from the Manufacturer
Controls/Indicators

Status IndicatorsColor and graphic LCD

Management

Network ManagementSNMP/Webcard

Environmental Conditions

Maximum Operating Temperature40??C
Maximum Operating Elevation3 km

Interfaces/Ports

USBYes
VGANo
Modem (RJ-11)No
Serial PortNo
EPO PortYes
USB (HID Compliant) PortYes

Miscellaneous

Package ContentsEDGE-1000IMT 1kVA Tower UPS
USB Cable
Printed Quick Installation And Guide Safety Instructions
Adjustable 4-post Rack Mounting Kit
Support Base For Tower Configuration
Input and output power cables

Software IncludedPower Assist
Country of OriginChina
Environmentally FriendlyYes
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)

Physical Characteristics

Weight (Approximate)12 kg
Form FactorTower
Rack Height1U
Height220 mm
Width145 mm
Depth370 mm

Power Description

Input Voltage278 V
Output Voltage240 V AC
230 V AC 8 V AC
220 V AC 0 V AC
Surge Energy Rating624 J
Waveform TypePure Sine Wave
Input Voltage Range166 V AC - 278 V AC
Input Frequency65 Hz
Load Capacity (VA)1 kVA
Load Capacity (Watt)900 W


General Information

Product TypeLine-interactive UPS
Manufacturer Part NumberEDGE-1000IMT
vertivco
ManufacturerVertiv
Product ModelEDGE-1000IMT
Product NameEDGE-1000IMT 1kVA Tower UPS
Product LineEDGE
Brand NameVERTIV

Battery Information

Battery ChemistryLead Acid
Hot SwappableYes
Battery Size12V
Battery Capacity10000 mAh
Number of Batteries2
Backup/Run Time (Half Load)15 Minute
Backup/Run Time (Full Load)5 Minute
Battery CharacteristicsValve-regulated, Non-spillable
Typical Battery Recharge Time3 Hour
Number of External Battery Cabinets6

Technical Information

Application/UsageData Storage
Edge Computing
Electronic
IOT Device
IT Equipment
Network
Server
Business
Critical System
Data Center
Plug/Connector TypeIEC 60320 C14
PhaseSingle Phase
Receptacle TypeIEC 60320 C13
AVRYes
Transfer Time6 ms
Receptacle Detail5 x IEC 60320 C13
