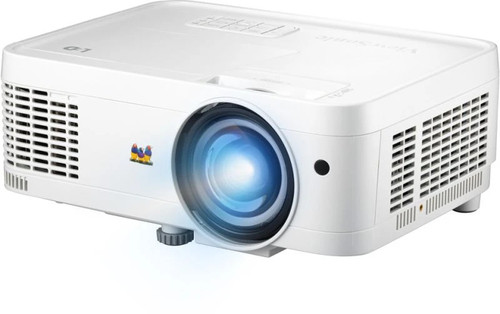

Viewsonic LSD300W-ST Short Throw Dlp Projector 16:10 Wall Mountable Ceiling Moun LSD300W-ST

ViewSonic LSD300W-ST Short Throw DLP Projector - 16:10 - Wall Mountable, Ceiling Mountable - 1280 x 800 - Front, Ceiling - 1080p - 60000 Hour Normal Mode - WXGA - 3,000,000:1 - 3700 lm - HDMI - USB - Network (RJ-45) - Education, Class Room Product Description The LSD300W-ST is a short-throw LED projector from ViewSonic, designed specifically for education environments. It delivers 3,300 ANSI Lumens of brightness and WXGA resolution, making it ideal for small to medium-sized classrooms. With a 0.49 short-throw ratio, it projects a 100" image from just 1.06 meters, ensuring clear visuals with minimal glare and shadows. Powered by third-generation LED technology, this lamp-free projector offers a 60,000-hour lifespan, helping reduce maintenance costs and eliminate the use of mercury-based lamps. Its sealed DLP engine ensures dustproof, filter-free operation with long-lasting color performance. Designed for intuitive operation, the LSD300W-ST features instant power on/off, horizontal/vertical keystone correction, 4-corner adjustment, and 360?? projection, making it suitable for versatile installations-including floor projection in education settings. A built-in LAN control interface streamlines centralized device management and supports integration with Crestron, Extron, and ATEN systems.
Audio

Speaker IncludedYes

Power Description

Operating Power Consumption229 W
Voltage Frequency60 Hz

Technical Information

Projection MethodCeiling
Front

Video

Video Signal StandardHDTV
Output Scan Format1080p

Interfaces/Ports

USBYes
HDMIYes
Network (RJ-45)Yes

Lamp

Lamp TypeLED
Number of Lamps1
Normal Mode Lamp Life60000 Hour

Miscellaneous

Application/UsageClass Room
Education
Package ContentsLSD300W-ST DLP Projector
1 x Power Cord
1 x Remote Control
1 x VGA Cable
Warranty Card (CN Only)
Lens Cover
QSG



Contrast Ratio3,000,000:1
Color Supported1.07 Billion Colors
Native Resolution1280 x 800
Standard Mode Brightness3700 lm
Graphic ModeWXGA
Native Aspect Ratio16:10


Physical Characteristics

Weight (Approximate)2.85 kg
Form FactorCeiling Mountable
Wall Mountable
Height115 mm
Width294 mm
Depth237 mm

Projection Lens

Maximum Focal Length6.90 mm
Minimum Projection Distance630 mm
Maximum Projection Distance1.58 m
Maximum Diagonal Image Size7.62 m (300")
Minimum Diagonal Image Size1524 mm
Throw TypeShort Throw

General Information

Product TypeDLP Projector
Manufacturer Part NumberLSD300W-ST
viewsoniceurope /uk/
ManufacturerViewSonic Corporation
Product ModelLSD300W-ST
Product NameLSD300W-ST DLP Projector
Brand NameViewSonic
