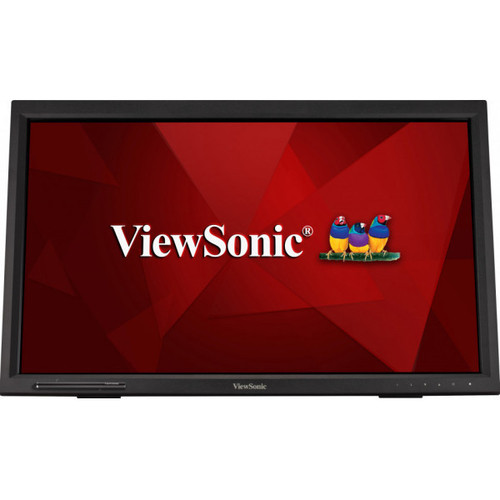

Viewsonic TD2423 24" Class Lcd Touchscreen Monitor 16:9 7 Ms 61 Cm 24" Viewable TD2423

ViewSonic TD2423 24" Class LCD Touchscreen Monitor - 16:9 - 7 ms - 61 cm (24") Viewable - Infrared - 10 Point(s) Multi-touch Screen - 1920 x 1080 - Full HD - Vertical Alignment (VA) - 16.7 Million Colours - 250 cd/m?? - LED Backlight - Speakers - DVI - HDMI - USB - VGA - China Environmental United Certification Center (CEC), Electronic Product Environmental Assessment Tool Silver (EPEAT Silver) OVERVIEW The ViewSonic?- TD2423 is a 24" IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2423 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2423 is equipped with VGA, HDMI, DVI and USB connectivity. Intuitive Multi-touch Experience An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens, the TD2423 delivers an intuitive multi-touch experience with every tap, pinch, and swipe. IR Touch Technology Operating System Support This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi. Simple and Safer Way to Interact This monitor can be operated by stylus and gloved hands, which improves hygiene and is effective for selection, dragging and drawing. What's more, there is a magnetic pen placeholder on the base. Anti-scratch Touchscreen With a built-in 7H hardness screen, it's resistant to surface damage caused by sharp objects. 7H Hardness Screen Adjustable Tilt This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone. Clear Images This monitor features Full HD 1920x1080 resolution to benefit you with greater image details and more displayable on-screen contents. Full HD 1080p Resolution Dual Integrated Speakers With built-in 2-watt speakers, this monitor provides you a better audiovisual experience. Enhanced Viewing Comfort This monitor is built with Flicker-Free technology and a Blue Light Filter to reduce eye fatigue after a long day of use.
Audio

SpeakersYes

Power Description

Operating Power Consumption16.50 W

Touchscreen Information

Touchscreen TypeInfrared
Multi-touch ScreenYes
Number of Simultaneous Touchpoints10

Interfaces/Ports

USBYes
HDMIYes
DVIYes
VGAYes
Number of USB Ports3

General Information

Product TypeLCD Touchscreen Monitor
Manufacturer Part NumberTD2423
Manufacturer Website Address viewsoniceurope /uk/
ManufacturerViewSonic Corporation
Product ModelTD2423
Product Name24" IR Touch Monitor
Brand NameViewSonic

Technical Information

Aspect Ratio16:9
Response Time7 ms
FeaturesScratch Resistant
Eco Mode
Low Blue Light
Flicker-free
Cable Lock Slot
7H Surface Hardness
Mount TypeWall Mountable
Desk Mountable
Viewable Screen Size61 cm (24")
Screen ModeFull HD
Horizontal Viewing Angle178??
Vertical Viewing Angle178??
Backlight TechnologyLED
Panel TechnologyVertical Alignment (VA)
Horizontal Frequency24 kHz to 82 kHz
Vertical Frequency50 Hz to 75 Hz
Screen Size Class24"
Stand AdjustmentsTilt
Response Time Details7 ms GTG (OD)


Video

Brightness250 cd/m??
Color Supported16.7 Million Colours
Maximum Resolution1920 x 1080
Dynamic Contrast Ratio20,000,000:1
Native Contrast Ratio3,000:1
Color Gamut104% sRGB
72% NTSC

Physical Characteristics

Weight (Approximate)4.70 kg
Height348 mm
Width571 mm
Depth61 mm
Weight with Stand (Approximate)5.20 kg
VESA Mount CompatibleYes
VESA Mount Standard100 x 100
Height with Stand348 mm
Width with Stand571 mm
Depth with Stand101 mm

Miscellaneous

Environmentally FriendlyYes
Environmental CertificationChina Environmental United Certification Center (CEC)
Electronic Product Environmental Assessment Tool Silver (EPEAT Silver)
Energy StarYes
Energy Efficiency CertificationChina Energy Conservation Program (CECP)
ENERGY STAR 8.0
Energy Efficiency ComplianceEnergy-related Products Directive (ErP)
Environmental ComplianceChina Restriction of Hazardous Substances (China RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)
