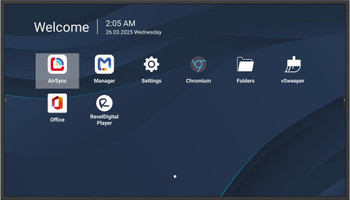

Viewsonic Viewboard CDE4314-2C 43"" Lcd Digital Signage Display 24 Hours/7 Days CDE4314-2C

ViewSonic ViewBoard CDE4314-2C 43"" LCD Digital Signage Display - 24 Hours/7 Days Operation - Energy Star - Thin Film Transistor (TFT) - ARM Cortex A73 - 4 GB DDR4 SDRAM - 3840 x 2160 - 16:9 - 8 ms - Direct LED - 500 cd/m?? - 2160p - USB - HDMI - Serial - Wireless LAN - Ethernet - Android 14 The ViewSonic CDE14-2C Series is a commercial-grade 4K display built for 24/7 operation in offices, retail spaces, transit hubs, and other high-demand environments. Powered by Android 14 (upgradeable to Android 16) and a quad-core SoC with 4 GB RAM, it supports smooth multitasking and fast warm boot for immediate startup. With 500 nits of brightness and support for both landscape and portrait modes, it delivers sharp, high-impact visuals for presentations and signage alike. Continuous USB media playback with automatic signal failover ensures uninterrupted content delivery, even when the primary source is lost. Designed for IT and AV professionals, the CDE14-2C Series integrates seamlessly with leading ProAV control systems and ViewSonic Manager for streamlined deployment and remote management. Whether deployed as a standalone unit or as part of a larger installation, it provides a dependable solution for corporate and commercial environments. Fast Warm Boot for Seamless Communication With a warm boot in under 7 seconds, the CDE14-2C Series eliminates delays at the start of meetings, presentations, and scheduled signage. It ensures your content appears exactly when it's needed-ideal for corporate, retail, and education environments where every second counts. Reliable Performance for Multitasking and Signage Powered by Android 14 OS (upgradeable to Android 16), this commercial display combines a quad-core processor with 4 GB RAM to deliver smooth multitasking during meetings and dependable performance for multimedia playback and digital signage. Flexible Orientation for Any Setup Supporting both landscape and portrait modes, this commercial-grade display adapts to a wide range of installation needs, from retail and digital menu boards to meeting room displays and campus communication. Native 4K Resolution for Uncompromised Detail The CDE14 Series offers true native 4K resolution, delivering noticeably sharper and more detailed visuals than standard upscaled 4K. This ensures exceptional clarity and precise detail reproduction, making it ideal for text-heavy presentations and visually rich digital signage Commercial-grade Digital Display Built for 24/7 operation, the CDE14-2C Series delivers uninterrupted communication in business-critical environments. With 500 nits of brightness, it produces clear, vibrant visuals in any indoor setting, regardless of lighting conditions. Scheduled USB Media Playback The CDE14-2C Series supports USB playback for video, audio, and image files. Boot-on-Source functionality-via USB Auto-Play or resume-last-source settings-enables seamless, automated playback for digital signage without requiring a connected PC. Signal Failover for Continuous Playback When no signal is detected on the primary input, the CDE14-2C Series automatically switches to the next available source, ensuring uninterrupted content display. With configurable input priority, users can set fallback sources such as an alternative HDMI or USB-C port to maintain uninterrupted content delivery in high-traffic environments, including retail stores, transit hubs, and corporate lobbies where uptime is critical. One-Cable USB-C Connectivity The CDE14-2C Series includes a USB-C port that delivers video, high-speed data, Ethernet, and 15W charging-all through a single cable. Ideal for meeting rooms and shared workspaces, it lets users connect a laptop and start presenting instantly, minimizing startup delays and eliminating cable clutter.
Software

Operating SystemAndroid 14

Memory

Standard Memory4 GB
Memory TechnologyDDR4 SDRAM

Network & Communication

EthernetYes
Wireless LANYes

Power Description

Input Voltage120 V AC
230 V AC

Processor & Chipset

Processor TypeCortex A73
Processor CoreQuad-core (4 Core)
Processor ManufacturerARM

Environmental Conditions

Minimum Operating Temperature0??C
Maximum Operating Temperature40??C
Minimum Operating Humidity20%
Maximum Operating Humidity80%

Video

Brightness500 cd/m??
Color Depth8-bit+FRC
Scan Format2160p
Dynamic Contrast Ratio2,000:1
Native Contrast Ratio1,200:1

Physical Characteristics

Weight (Approximate)9.10 kg
Mount TypeWall Mountable
Height55.3 cm
Width96.5 cm
Depth6.2 cm
VESA Mount Standard200 x 200
Mount SurfaceWall

Miscellaneous

Application/UsageCommercial
Retail
Professional Audio/Video
Office
Meeting Room
High Traffic Area
Lobby
Package ContentsCDE4314-2C 43" Commercial Digital Display for SMB
3M power cord
Remote control
2 x AAA battery
Quick Start Guide
RS232 adapter
4 x Wall mount Screw
HDMI cable 3 M(HDMI LA certified)
Compliance statement

Environmentally FriendlyYes
Environmental CertificationElectronic Product Environmental Assessment Tool Silver (EPEAT Silver)
Energy StarYes
Indoor/OutdoorIndoor
Energy Efficiency CertificationENERGY STAR 8.0
Energy Efficiency ComplianceEnergy-related Products Directive (ErP)
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE)
Restriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)


Technical Information

Panel TechnologyThin Film Transistor (TFT)
Surface Hardness3H
Bezel Width (Bottom)9.90 mm
Bezel Width (Top)9.90 mm
Bezel Width (Left)9.90 mm
Bezel Width (Right)9.90 mm
Operation Hours24 Hours/7 Days

General Information

Product TypeDigital Signage Display
Manufacturer Part NumberCDE4314-2C
viewsoniceurope/uk/
ManufacturerViewSonic Corporation
Product ModelCDE4314-2C
Product NameCDE4314-2C 43" Commercial Digital Display for SMB
Product LineViewBoard
Product SeriesCDE14-2C
Brand NameViewSonic

Display & Graphics

Aspect Ratio16:9
Display Resolution3840 x 2160
Response Time8 ms
Viewable Screen Size43"
OrientationLandscape/Portrait
Number of Screens1
Display Screen TypeLCD
Backlight TechnologyDirect LED
Screen Size Class1092.20 mm
Maximum LED Life5.7 Year

Interfaces/Ports

USBYes
HDMIYes
Number of Network (RJ-45) Ports1
Number of HDMI Inputs3
Number of USB 2.0 Ports2
SerialYes
Number of Audio Line Out1
USB Type-CYes
RS-232C InputYes
Digital Audio Optical OutputYes
