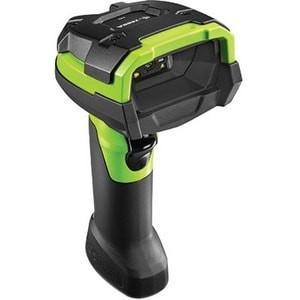

Zebra Ds3608-Sr. Type: Handheld Bar Code Reader Scanner Type: 1D/2D Sensor Type: DS3608-SR00003VZWW

Zebra DS3608-SR. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wired, Standard interfaces: RS-232, USB, Keyboard wedge. Product colour: Black, Green, International Protection (IP) code: IP67, Protection features: Dust resistant, Shock resistant, Water resistant. Power source type: Battery, Battery technology: Lithium-Ion (Li-Ion), Battery capacity: 3100 mAh. Weight: 305 g, Width: 132 mm, Depth: 76 mm Unstoppable performance for standard range 1D/2D barcode capture Every day, workers in your warehouse and on the manufacturing plant floor scan thousands of barcodes to ensure product quality and on-time order delivery. Their productivity depends on the quality of the scanner you put in their hands. When workers need to capture 1D and 2D barcodes at standard ranges, with the corded DS3608-SR and cordless DS3678-SR scanner, you can give them the best - unmatched rugged design, unmatched scanning performance and unrivaled manageability. The advanced imager delivers lightning-fast capture of any 1D or 2D barcode printed on a label in virtually any condition or displayed on a screen, from near contact to nearly 5 ft./1.5 m away. The ultra-rugged design is practically indestructible - ideal for punishing environments. The DS3608-SR/DS3678-SR couldn't be easier and less time-consuming to deploy and manage. And when it comes to cordless technology, the DS3678-SR is loaded with Zebra-only features that put it in a class of its own, including a sealed rugged cradle, a smart battery and Zebra's Wi-Fi Friendly Mode that prevents interference with your Wi-Fi network. The DS3608-SR/DS3678-SR - the unstoppable performance you need to maximize workforce productivity and throughput in your operations. Superior scanning performance on any 1D/2D barcode, in any condition The advanced imager reads 1D and 2D barcodes displayed on a screen or printed on a label faster and farther than other standard range scanners. Easily read barcodes from near contact to nearly 5 ft./1.5 m away* - even if they are under shrinkwrap, damaged, dirty or poorly printed. The result? Workers can capture barcodes as fast as they can pull the trigger for first-time every time scanning - and extraordinary productivity. Ultra-rugged - the most indestructible design in its class The DS3608-SR/DS3678-SR is our most rugged scanner yet, with the highest drop, tumble and sealing specification in its class. It is built to survive an 8 ft./2.4 m drop to concrete - 23 percent more durable than any other scanner in this class. The DS3608-SR/DS3678-SRoperates reliably after 5,000 tumbles, simulating the real-world tumbling that occurs with a drop. Both models are dustproof, sprayproof and waterproof to IP67 - they can be sprayed down with jetting water and even submersed in water. Easy management with our complimentary industry-best tools Remotely configure scanners, upgrade firmware, format data properly for your back end and monitor PowerPrecision+ battery statistics and more with 123Scan and Scanner Management Service (SMS).
Interfaces/Ports

Host InterfaceUSB

Power Description

Input Voltage5.5 V DC
Power SourceUSB

Physical Characteristics

Weight (Approximate)306.2 g
Form FactorHandheld
Height185.4 mm
Width76.2 mm
Depth132.1 mm
Product ColorIndustrial Green
RuggedYes

Technical Information

Barcode Symbology Supported
1D:Code 39
Code 128
Code 93
Codabar/NW7
Code 11
MSI Plessey
UPC/EAN
I 2 of 5
Korean 3 of 5
GS1 DataBar
Base 32 (Italian Pharma)

2D:PDF417
Micro PDF417
Composite Codes
TLC-39
Aztec
DataMatrix
MaxiCode
QR Code
Micro QR
Chinese Sensible (Han Xin)
Postal Codes
DotCode

Digimarc:Digital watermark technology

IUID Support:Supports IUID parsing, the ability to read and separate IUID fields per application requirements

Connectivity TechnologyCable
Scanning Distance1.50 m
Scanner RangeStandard Range
Drop Specification
Withstands multiple 8.0 ft./2.4 m drops to concrete

Image Sensor TypeImager
Scanning Capability2D
1D
Field of View (Horizontal)42??
Field of View (Vertical)28??
Reading Angle (Skew)60??
Reading Angle (Pitch)60??
Reading Angle (Roll)360??
Minimum Print Contrast15%
Minimum Element Resolution (DataMatrix)0.19 mm
Maximum Element Resolution (DataMatrix)0.25 mm


General Information

Product TypeBarcode Scanner
Manufacturer Part NumberDS3608-SR00003VZWW
zebra/gb/en
ManufacturerZebra Technologies Corporation
Product ModelDS3608-SR
Product NameDS3608-SR Handheld Barcode Scanner
Product Series3600
Brand NameZebra

Miscellaneous

Additional Information
USB Cable separate

Application/UsageIndustrial
Manufacturing
Warehouse
Environmentally FriendlyYes
Ingress Protection (IP) RatingIP65
IP67
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
