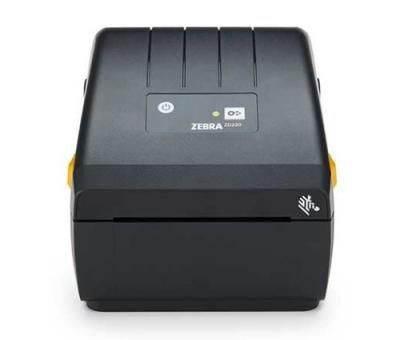

Zebra ZD23042-32EG00EZ TT Printer 74/300M ZD230 ZD23042-32EG00EZ

Not all printers are created equally, especially basic models. To reduce costs, value printers are often constructed using less expensive components and fewer features. Many fail to perform under more demanding duty cycles, create delays and downtime for repairs, and require replacement after only a few years of use. Instead of conserving budget, customers are left with greater expense and hassle. Zebra does it differently. Meet the exception. The ZD230 desktop printer gives you extra features and reliable operation at an affordable price�both at the point of purchase and across the entire lifecycle. Engineered with Zebra quality, it boasts a dual wall construction. And, it offers wireless connectivity for networked, remote printing. Built to last for years, the ZD230 provides an outstanding return on your investment.

Just the Features You Need
This 4-inch printer produces labels quickly, up to 6� per second, to keep your workflows moving. Increased memory allows you to store more fonts and graphics. A single LED indicator and single button for feed/pause make it easy to operate and identify printer status. Choose from direct thermal or thermal transfer models, and add an optional factory-installed peeler or cutter. The ZD230 features a core set of Print DNA software applications, powered by Link-OS Basic, to deliver a cost-effective and dependable print experience. It is ideal for use in transportation and logistics, light manufacturing, retail and healthcare applications to print a variety of tickets, tags, passes, labels and receipts.

Backed by Zebra�s Worldwide Service and Support
Access support quickly anywhere around the globe through Zebra�s trusted network of more than 10,000 partners. Avoid costly repairs and downtime with an affordable service plan that�s tailored to the coverage you need for your desktop printer. Zebra�s OneCare SV provides the right level of service at the right price. It gives you two years of coverage for normal wear and tear, double the standard warranty coverage, priority turnaround times at the depot and more�all for a tiny fraction of the cost of a single repair.

Consistently Exceptional Zebra Certified Supplies
Printing supplies can impact everything from printhead lifespan to operational efficiency. That�s why we design, produce and rigorously pretest our own line of thermal printing supplies to ensure consistent, optimised performance in your Zebra printer�and peace of mind for you. For industry-leading quality, service and thermal printing expertise, choose Zebra Certified Supplies.

The ZD230 gives you more. The quality and reliability you expect from Zebra, along with the extra features you need. And, it helps you conserve costs now, and for years to come. Gain your competitive edge with Zebra.

Get Printing Quickly
The ZD230 is simple to install and begin printing � right out of the box. Easily replace legacy printers using ZPL, EPL or non- Zebra command languages. USB, Ethernet, Wi-Fi and Bluetooth� connectivity options enable universal interoperability. The ZD230 can accommodate a 300 M ribbon roll to lengthen the time between media changes. And, Zebra�s OpenACCESS� clamshell design expedites media replacement. It�s also ENERGY STAR� qualified to reduce your operational expenses.

Design



Display



No


Product colour



Black


Logistics data



Harmonized System (HS) code



84433210


Memory



Flash memory



256 MB


Internal memory



128 MB


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



4.4 - 41 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-40 - 60 �C


Package dimensions



Gross Weight (Package, kg)



3.65 kg


Packaging content



Cables included



AC


Quantity per pack



1 pc(s)


Packaging data



Quantity per pack



1 pc(s)


Paper handling



Core diameter



1.27 cm


Maximum label length



0.991 m


Maximum label width



11.2 cm


Maximum roll diameter



12.7 cm


Media thickness



0.08 - 0.1905 mm


Ribbon length



300 m


Ribbon width



10.92 cm


Supported paper width



25.4 - 112 mm


Performance



Built-in barcodes



1D, 2D, AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, MaxiCode, PDF417, POSTNET, QR Code, UPC-A, UPC-E


Certification



IEC 60950-1, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus, CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM


Cutter



Yes


Energy Star certified



Yes


Flash memory



256 MB


Internal memory



128 MB


Number of fonts



23


Page description languages



EZPL, XML, ZPL II


Ribbon length



300 m


Ribbon width



10.92 cm


Ports & interfaces



Bluetooth



No


Connectivity technology



Wired


Ethernet LAN



No


USB 2.0 ports quantity



1


USB port



Yes


Wi-Fi



No


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Energy Star certified



Yes


Printing



Colour



No


Maximum printing width



10.4 cm


Maximum resolution



203 x 203 DPI


Print speed



152 mm/sec


Print technology



Thermal transfer


Standard printer languages



EZPL, XML, ZPL II


Product dimensions



Net Weight (Product, kg)



3.45 kg


Product Depth



35 cm


Product Height



29 cm


Product Width



25 cm


Technical details



Harmonized System (HS) code



84433210


Sustainability certificates



ENERGY STAR


Vendor information



Brand Name


Zebra


Warranty



2 Year(s)
