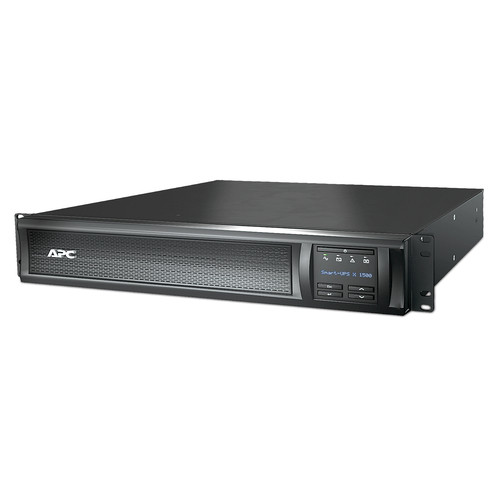

Apc Smart-Ups X SMX1500RMI2UNC 1500Va 8X C13 Output Usb Expandable Runtime Nmc. SMX1500RMI2UNC

APC Smart-UPS X SMX1500RMI2UNC - 1500VA, 8x C13 output, USB, expandable runtime, NMC. UPS topology: Line-Interactive, Output power capacity: 1.5 kVA, Output power: 1200 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 311 VAh, Typical backup time at full load: 5.8 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Compliance certificates: RoHS, Certification: C-t Stay always online and prevent data loss As soon as the power fails, an APC Smart-UPS immediately supplies emergency power to all connected equipment. Because an APC UPS does this automatically, you prevent unwanted failure of, for example, a PC, server or switch. With the APC PowerChute Network shutdown software, you can even have critical IT hardware shut down automatically and in a controlled manner when the UPS battery is almost empty. This prevents data loss, downtime and physical damage to hardware. Extend the runtime You can easily increase the number of minutes that the APC SMX UPS can independently supply emergency power by connecting external battery packs (SMX48RMBP2U). A runtime of several hours is even possible. Safety In addition, a Smart-UPS protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for (small) business use. Manage your Smart-UPS Thanks to the pre-installed network card (ap9641), you can easily connect the APC UPS to the network. This allows you to monitor and manage the UPS remotely (SNMP) and the UPS can send a shutdown signal to multiple physical and/or virtual servers using PowerChute Network Shutdown software. PowerChute Network Shutdown PowerChute Network Shutdown is UPS management software that works with the UPS Network Management Card to protect Windows, Linux and Host ESXi, but also hyperconverged and virtual infrastructure*. In the event of a power failure, PowerChute can shut down your virtual machines correctly and the pre-configured boot sequence ensures that they are turned back on. *For HCI and virtual machine support an additional license is required:1 year: SWPCNS1Y-DIGI 3 years: SWPCNS3Y-DIGI 5 years: SWPCNS5Y-DIGI Remote management and monitoring of your network The network card can be managed remotely via the user-friendly web browser interface, remote management software EcoStruxure--- IT (SFTWES1-DIGI) or another SNMP-compatible system. Tip EcoStruxure--- IT also includes the functionalities of the support contract below. Support contract The optional network card support contract license* ensures that you are always up-to-date and secure and includes additional benefits such as frequent updates with:--- New and improved functions --- Security updates --- Advanced support (The functionality of the support contract is included free of charge in the first year of the UPS) *The above license and available in the variants:1 year: SWNMC3SU-1Y-DIGI Up to (Replace the bold number in the article number with the desired variant) 6 years: SWNMC3SU-6Y-DIGI Ease of use The basic functionalities can be set and read using physical buttons and an LCD screen. Rack/tower convertible The APC Smart-UPS SMX is rack/tower convertible. Because both the feet and the 4 post rack mounting brackets are included, you can mount it in a rack (2U) or place it upright. Extend the lifespan The internal battery cartridge (APCRBC115) can be easily, safely and independently replaced by the user. This without having to switch off the APC SMX1500RMI2UNC or connected equipment. This allows you to easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment always remains online. Warranty extension The factory warranty of the SMX1500RMI2UNC is 3 years, with the exception of the battery cartridge, which has a factory warranty of 2 years. Both are extended by 3 years to 6 and 5 years respectively with the APC service pack (WBEXTWAR3YR-SP-04). Switched Outlet Groups: Remote reboot and phased start-up Thanks to the Switched Outlet Groups, it is possible to configure a phased/delayed power-on per UPS outlet group. This reduces the peak load on the UPS and brin
Interfaces/Ports

USBYes
Serial PortYes

Power Description

Input Voltage220 V AC
Output Voltage230 V AC
Load Capacity (VA)1.50 kVA
Load Capacity (Watt)1.20 kW

Technical Information

Emergency Power OFFYes
Plug/Connector TypeIEC 60320 C14
Receptacle TypeIEC 60320 C13
Receptacle Detail8 x IEC 60320 C13

General Information

Product TypeLine-interactive UPS
Manufacturer Part NumberSMX1500RMI2UNC
schneider-electric
ManufacturerSchneider Electric SA
Product ModelSMX1500RMI2UNC
Product NameSmart-UPS SMX1500RMI2UNC 1500 VA Tower/Rack Mountable UPS
Product LineSmart-UPS
Product SeriesSMX
Brand NameAPC by Schneider Electric


Battery Information

Battery ChemistryLead Acid
Hot SwappableYes
Backup/Run Time (Full Load)6 Minute
Battery CharacteristicsMaintenance-free, Sealed, Spill-proof
Typical Battery Recharge Time3 Hour

Miscellaneous

Package ContentsSmart-UPS SMX1500RMI2UNC 1500 VA Tower/Rack Mountable UPS
CD with Software
Documentation CD
Installation Guide
Rack Mounting Support Rails
Removable Support Feet
Smart UPS Signalling RS-232 Cable
USB Cable

Certifications & StandardsC-tick
CE
EN 50091-1
EN 50091-2
VDE
UL 1449

Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Physical Characteristics

Weight (Approximate)24.82 kg
Form FactorRack/Tower
Rack Height2U
Height89 mm
Width432 mm
Depth490 mm
Color FamilyBlack
