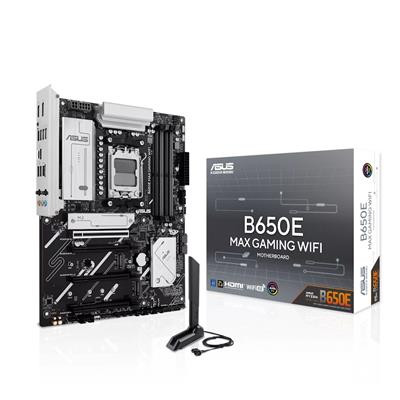

Asus B650E MAX GAMING WIFI Socket Am5/B650/Ddr5/S-Ata 6Gb/S/Atx B650E MAX GAMING WIFI

Product Group:

Motherboards



Manufacturer:

ASUS



SKU:
8755


Product Specifications



Product Name:

ASUS B650E MAX GAMING WIFI (Socket AM5/B650/DDR5/S-ATA 6Gb/s/ATX)



Web Address:

www.asus



Model Number:

B650E MAX GAMING WIFI



EAN:

4711387932445



Package Type:

Retail



Warranty:

3 Years



BIOS:


256 Mb Flash ROM
UEFI AMI BIOS




Chipset:

AMD B650



CPU Interface:

Socket AM5



CPU Support:

asus /motherboards-components/motherboards/others/b650e-max-gaming-wifi/helpdesk_qvl_cpu?model2Name=B650E-MAX-GAMING-WIFI



RAM Technology:

DDR5 (Dual Channel)



RAM Slots:

4 x 288-pin



RAM Speeds:

Up to DDR5 8000+ (O.C.)



Max. Memory Support:

256GB



PCI Express 3.0 x16:

1



PCI Express 4.0 x16:

2



PCI Express 5.0 x16:

1



S-ATA 6Gb/s Port(s):

4



RAID:

Raid 0/1/5/10



M.2 Socket(s):


1 x PCIe Gen 5.0 x4
1 x PCIe Gen 4.0 x4
1 x PCIe Gen 4.0 x2




LAN Speed:


1 x Realtek 2.5Gb Ethernet
ASUS LANGuard




Wireless NIC:

Wi-Fi 6E



Wireless Technology:


2x2 Wi-Fi 6E (802.11ax)
Supports 2.4/5/6GHz frequency band




Bluetooth:

v5.3



On-Board Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC



On-Board Video:

Processor with integrated graphics is required



Back USB 2.0 Port(s):

2



Back USB 5Gbps Port(s) Type-A:

2



Back USB 10Gbps Port(s) Type-A:

3



Back USB 10Gbps Port(s) Type-C:

1



Back HDMI Port(s):

1



Back DisplayPort(s):

1



Back LAN Port(s):

1



Back Audio Jack(s):

3



Back Other Port(s):

1 x Wi-Fi module



Back Button(s):

1 x BIOS FlashBack



24-pin ATX Power:

1



8-pin ATX Power:

1



4-pin ATX Power:

1



USB 2.0 Header(s):

3



USB 5Gbps Header(s):

2



Thunderbolt Header(s):

1



COM Port Header(s):

1



Front Panel Audio Connector:

1



TPM Header(s):

1



S/PDIF Out Header(s):

1



Internal Other Port(s):

3 x Addressable RGB Gen 2 headers



Form Factor:

Standard ATX



Product Width:

244mm



Product Length:

305mm



Package Width:

27cm



Package Length:

35cm



Package Height:

7cm



Net Weight:

1.09Kg



Gross Weight:

1.70Kg



Package Contents:


Motherboard
2 x SATA 6Gb/s cable
1 x ASUS WiFi Q-Antenna
1 x M.2 rubber package
3 x Screw packages for M.2 SSD
1 x Quick start guide
