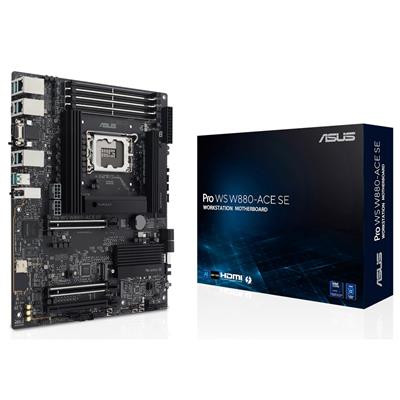

Asus PRO WS W880-ACE SE Socket 1851/W880/Ddr5/S-Ata 6Gb/S/Atx PRO WS W880-ACE SE

Product Group:

Motherboards



Manufacturer:

ASUS



SKU:
8187


Product Specifications



Product Name:

ASUS PRO WS W880-ACE SE (Socket 1851/W880/DDR5/S-ATA 6Gb/s/ATX)



Web Address:

www.asus



Model Number:

PRO WS W880-ACE SE



EAN:

4711387994221



Package Type:

Retail



Warranty:

3 Years



Chipset:

Intel W880



CPU Interface:

Socket 1851



CPU Support:

https://www.asus/uk/motherboards-components/motherboards/workstation/pro-ws-w880-ace-se/helpdesk_knowledge?model2Name=Pro-WS-W880-ACE-SE



RAM Technology:

DDR5 (Dual Channel)



RAM Slots:

4 x 288-pin



RAM Speeds:

Up to DDR5 9066+ (O.C.)



Max. Memory Support:

256GB



PCI Express 4.0 x16:

1



PCI Express 5.0 x16:

2



S-ATA 6Gb/s Port(s):

4



RAID:

Raid 0/1/5



M.2 Socket(s):


1 x PCIe Gen 5.0 x4
3 x PCIe Gen 4.0 x4




LAN Speed:


2 x Intel 2.5Gb Ethernet
1 x Realtek 1Gb Ethernet dedicated for AST2600




On-Board Audio:

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC



On-Board Video:

Processor with integrated graphics is required



Back USB 10Gbps Port(s) Type-A:

6



Back USB 20Gbps Port(s) Type-C:

1



Back Thunderbolt 4 Port(s):

1



Back VGA Port(s):

1



Back HDMI Port(s):

1



Back LAN Port(s):

3



Back Audio Jack(s):

2



Back Button(s):


1 x BIOS FlashBack
1 x Clear CMOS




24-pin ATX Power:

1



8-pin ATX Power:

2



USB 2.0 Header(s):

2



USB 5Gbps Header(s):

1



USB 20Gbps Header(s):

1



Thunderbolt Header(s):

1



COM Port Header(s):

1



Front Panel Audio Connector:

1



TPM Header(s):

1



Internal Other Port(s):

1 x Thermal Sensor header



Form Factor:

Standard ATX



Product Width:

244mm



Product Length:

305mm



Package Width:

27cm



Package Length:

34cm



Package Height:

7cm



Net Weight:

1.34Kg



Gross Weight:

1.43Kg



Special Features:


Ready for advanced AI PCs: Designed for the future of AI computing, with the placement and connectivity needed for demanding AI applications.
Intel LGA1851 socket: Ready for Intel Core Ultra 9, 7, and 5 desktop processors.
Robust performance:?8+1+2+2 teamed power stages, ProCool II power connectors, high-quality alloy chokes and durable capacitors.
Future-proofed connectivity: Thunderbolt 4, Dual 2.5Gb Ethernet, two PCIe?5.0 PCIe slots with full support for next-gen graphics cards, one PCIe 5.0 M.2 and three PCIe 4.0 M.2 slots and a USB 20Gbps front-panel header.
Exclusive AI technologies: AI Cooling II and AI Advisor.
DIY-friendly design:?M.2 Q-Latch, BIOS?Flashback, Q-Connector.
Server-grade IPMI remote management and onboard BMC: Hardware- and software-level management with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Centre Express software for real-time monitoring and management.




Package Contents:


Motherboard
2 x SATA 6Gb/s cables
1 x AMI license sticker
1 x I/O shield
1 x M.2 Q-Latch packages
2 x M.2 rubber packages
1 x Q-connector
1 x ACC Express activation key card
1 x Quick start guide
