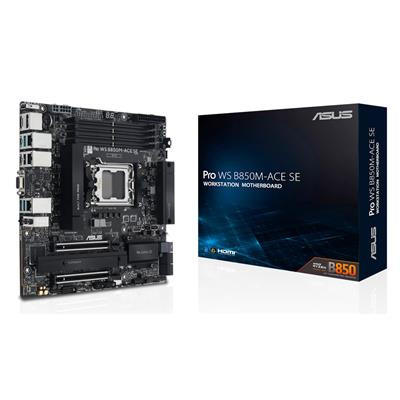

Asus Pro Ws W790e-Sage Se Socket Am5/B850/Ddr5/S-Ata 6Gb/S/Micro Atx PRO WS B850M-ACE SE

Product Group:

Motherboards



Manufacturer:

ASUS



SKU:
7743


Product Specifications



Product Name:

ASUS Pro WS W790E-SAGE SE (Socket AM5/B850/DDR5/S-ATA 6Gb/s/Micro ATX)



Web Address:

www.asus



Model Number:

PRO WS B850M-ACE SE



EAN:

4711636258753



Package Type:

Retail



Warranty:

3 Years



BIOS:


512 Mb Flash ROM
UEFI AMI BIOS (text-based)




Chipset:

AMD B850



CPU Interface:

Socket AM5



CPU Support:

https://www.asus/motherboards-components/motherboards/workstation/pro-ws-b850m-ace-se/helpdesk_qvl_cpu?model2Name=Pro-WS-B850M-ACE-SE



RAM Technology:

DDR5 (Dual Channel)



RAM Slots:

4 x 288-pin



RAM Speeds:

Up to DDR5 8000 (O.C.)



Max. Memory Support:

256GB



PCI Express 4.0 x16:

1



PCI Express 5.0 x16:

1



S-ATA 6Gb/s Port(s):

4



RAID:

Raid 0/1/5/10



M.2 Socket(s):

2 x PCIe Gen 5.0 x4



On-Board LAN:


1 x Realtek 10Gb Ethernet
1 x Intel- 2.5Gb Ethernet
1 x Realtek 1Gb Ethernet




On-Board Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC



On-Board Video:

Processor with integrated graphics is required



Back USB 2.0 Port(s):

2



Back USB 10Gbps Port(s) Type-A:

3



Back USB 10Gbps Port(s) Type-C:

2



Back VGA Port(s):

1



Back HDMI Port(s):

1



Back DisplayPort(s):

1



Back LAN Port(s):

3



Back Audio Jack(s):

2



Back Button(s):

1 x Clear CMOS



24-pin ATX Power:

1



8-pin ATX Power:

1



4-pin ATX Power:

1



USB 2.0 Header(s):

1



USB 3.0 Header(s):

3



USB 5Gbps Header(s):

1



USB 20Gbps Header(s):

1



Thunderbolt Header(s):

1



COM Port Header(s):

1



Front Panel Audio Connector:

1



TPM Header(s):

1



Internal Other Port(s):

1 x Thermal Sensor header



Internal Button(s):


1 x BIOS FlashBack
1 x Reset
1 x Start




Form Factor:

Micro ATX



Product Width:

244mm



Product Length:

244mm



Package Width:

28cm



Package Length:

28cm



Package Height:

7cm



Net Weight:

0.96Kg



Gross Weight:

1.04Kg



Special Features:


Ready for Advanced AI PCs: Built to power next-gen AI workloads with robust performance, ultrafast connectivity, and future-proof architecture.
AMD AM5 Socket Support: Compatible with AMD Ryzen 9000/8000/7000 Series and AMD EPYC 4005 Series processors.
Ultrafast Connectivity: Two PCIe 5.0/4.0 x16 slot (one at x4), 10 Gb and 2.5 Gb LAN ports, two PCIe 5.0 x4 M.2 slots, front USB 20Gbps Type-C and MCIO NVMe support.
Server-grade IPMI Remote Management: Supports onboard BMC AST2600, along with ASUS Control Centre Express IT management software for real-time monitoring and management.
Proven Reliability and Stability: Extensively validated with broad compatibility, a comprehensive QVL, and tested for 24/7 operation.




Package Contents:


Motherboard
2 x SATA 6Gb/s cables
1 x I/O shield
1 x Q-connector
1 x M.2 rubber package(s)
1 x ACC Express activation key card
1 x Quick start guide
