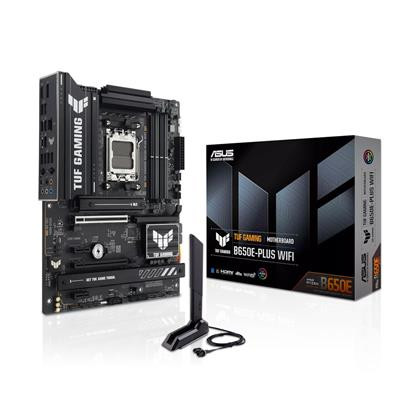

Asus TUF GAMING B650E-PLUS WIFI Socket Am5/B650/Ddr5/S-Ata 6Gb/S/Atx TUF GAMING B650E-PLUS WIFI

Product Group:

Motherboards



Manufacturer:

ASUS



SKU:
8818


Product Specifications



Product Name:

ASUS TUF GAMING B650E-PLUS WIFI (Socket AM5/B650/DDR5/S-ATA 6Gb/s/ATX)



Web Address:

www.asus



Model Number:

TUF GAMING B650E-PLUS WIFI



EAN:

4711387995488



Package Type:

Retail



Warranty:

3 Years



BIOS:


256 Mb Flash ROM
UEFI AMI BIOS




Chipset:

AMD B650



CPU Interface:

Socket AM5



CPU Support:

asus /motherboards-components/motherboards/tuf-gaming/tuf-gaming-b650e-plus-wifi/helpdesk_qvl_cpu?model2Name=TUF-GAMING-B650E-PLUS-WIFI



RAM Technology:

DDR5 (Dual Channel)



RAM Slots:

4 x 288-pin



RAM Speeds:

Up to DDR5 8000+ (O.C.)



Max. Memory Support:

256GB



PCI Express 4.0 x16:

1



PCI Express 5.0 x16:

1



PCI Express 4.0 x1:

1



S-ATA 6Gb/s Port(s):

4



RAID:

Raid 0/1/5/10



M.2 Socket(s):


1 x PCIe Gen 5.0 x4
2 x PCIe Gen 4.0 x4




LAN Speed:


1 x Realtek 2.5Gb Ethernet
TUF LANGuard




Wireless NIC:

Wi-Fi 6E



Wireless Technology:


2x2 Wi-Fi 6E (802.11ax)
Supports 2.4/5/6GHz frequency band




Bluetooth:

v5.3



On-Board Audio:

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC



On-Board Video:

Processor with integrated graphics is required



Back USB 2.0 Port(s):

6



Back USB 10Gbps Port(s) Type-A:

3



Back USB 20Gbps Port(s) Type-A:

1



Back HDMI Port(s):

1



Back DisplayPort(s):

1



Back LAN Port(s):

1



Back Audio Jack(s):

5



Back Other Port(s):

1 x Wi-Fi module



Back Button(s):

1 x BIOS FlashBack



24-pin ATX Power:

1



8-pin ATX Power:

2



USB 2.0 Header(s):

2



USB 5Gbps Header(s):

1



USB 10Gbps Header(s):

1



Thunderbolt Header(s):

1



COM Port Header(s):

1



Front Panel Audio Connector:

1



Internal Other Port(s):

3 x Addressable Gen 2 headers



Product Width:

244mm



Product Length:

305mm



Package Width:

27.3cm



Package Length:

35.3cm



Package Height:

6.8cm



Net Weight:

1.39Kg



Gross Weight:

1.54Kg



Special Features:

ASUS TUF GAMING B650E-PLUS WIFI takes all the essential elements of the latest AM5 Socket for AMD Ryzen Desktop Processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming.



Package Contents:


Motherboard
2 x SATA 6Gb/s cables
1 x ASUS WiFi Q-Antenna
1 x TUF GAMING sticker
2 x M.2 rubber packages
1 x Quick start guide
