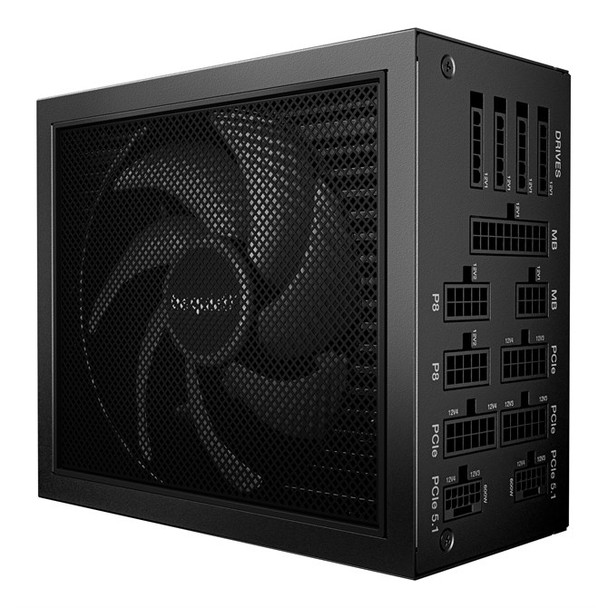

Be Quiet! Dark Power 14 1200 W - 80 Plus Titanium Power Supply Unit 20+4 Pin ATX BP021EU

80 PLUS certification : 80 PLUS Titanium


AC input frequency : 50/60 Hz


AC input voltage : 100 - 240 V


ATX power connector (20+4 pin) : Yes


ATX version : 3.1


Bearing technology : FDB


Cable ties included : Yes


Cabling type : Fully-Modular


Combined power (+12V) : 1200 W


Combined power (+3:3V) : 120 W


Combined power (+5V) : 120 W


Compliance certificates : CB, Federal Communications Commission (FCC), RoHS, T-V mark, UKCA, WEEE, cTUVus


Cooling type : Active


CPU power cable length : 70 cm


CPU power connector (4+4 pin) : Yes


Depth : 175 mm


EAN : 4260052192030


Efficiency : 93.1%


EPS power connector (4+4 pin) : Yes


EPS power connector (8-pin) : Yes


EPS version : 2.92


Fan diameter : 13.5 cm


Fan speed : 0 - 2100 RPM


Height : 86 mm


Hold time : 19.5 ms


Manual : Yes


Manual languages : Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Polish, Russian, Thai, Ukrainian


Manufacturer : Be quiet


Manufacturer Part Code : BP021EU


Max output current (+12V1) : 33 A


Max output current (+12V2) : 33 A


Max output current (+12V3) : 45 A


Max output current (+12V4) : 45 A


Max output current (+3:3V) : 25 A


Max output current (+5V) : 24 A


Max output current (+5Vsb) : 3 A


Maximum input current (@110V) : 10 A


Maximum input current (@220V) : 5 A


Mean time between failures (MTBF) : 100000 h


Model : 1


Motherboard power cable length : 60 cm


Motherboard power connector : 20+4 pin ATX


Noise level : 21.1 dB


Number of +12V rail(s) : 4


Number of fans : 1 fan(s)


Number of SATA power cables : 13


On/off fan switch : Yes


On/off switch : Yes


Operating temperature (T-T) : 0 - 40 -C


Package depth : 126 mm


Package height : 355 mm


Package weight : 3.7 kg


Package width : 230 mm


PCI Express connector : Yes


PCI Express power cable length : 60 cm


PCI Express power connectors (12-pin) : 2


PCI Express power connectors (6+2 pin) : 4


Peak power : 1300 W


Peripheral (Molex) power cable length : 900,1050 mm


Peripheral (Molex) power connectors (4-pin) : 2


Power factor : 0.98


Power protection features : Over current, Over voltage, Overheating, Overload, Short circuit, Surge & inrush protection (SIP), Under voltage


Power supply unit (PSU) form factor : ATX


Product colour : Black


Product name : Dark Power 14 1200 W - 80 Plus Titanium


Products per shipping (inner) case : 4 pc(s)


Purpose : PC


SATA power cable length : 600,750,900,1050 mm


Screws included : Yes


Shipping (inner) case height : 26 cm


Shipping (inner) case length : 52.8 cm


Shipping (inner) case net weight : 20.1 kg


Shipping (inner) case width : 36.8 cm


Sustainability certificates : ENERGY STAR, ErP, Triman


Total power : 1200 W


Weight : 2.3 kg


Width : 150 mm
