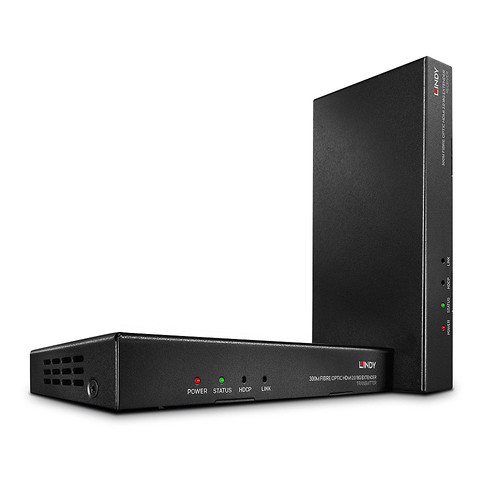

Lindy 300M Fibre Optic Hdmi 18G & Ir Extender. Type: Av Transmitter & Receiver M 38174

Lindy 300m Fibre Optic HDMI 18G & IR Extender. Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Maximum transfer distance: 300 m. Connectivity technology: Wired, Fiber optic connector: LC, Serial interface type: RS-232. Operating voltage: 12 V, Input current: 0.5 A. Width: 150 mm, Depth: 20 mm, Height: 74.4 mm. Package width: 305 mm, Package depth: 180 mm, Package height: 75 mm Extends HDMI 2.0 18G signals up to 300m over a single duplex LC cable Supports resolutions up to 4K 60Hz Ultra HD, with High Dynamic Range Bi-directional IR or RS-232 for seamless, flexible control HDCP 2.2 support to ensure maximum compatibility 2 year warranty The Lindy 300m Fibre Optic HDMI & IR Extender is a high performance solution for extending 4K 60Hz Ultra HD transmissions over incredible distances, which are not possible with traditional copper based systems, using a single standard LC duplex multimode (50/125?-m) fibre optic cable. Support for the HDMI 2.0 specification allows for the transmission of highly detailed 4K Ultra HD resolutions, using smart methods of compression, which decompresses the signal at the receiver for a visually lossless picture. Also providing support for High-Dynamic Range, video content can be seen with enhanced brightness, greater contrasts and a much wider colour gamut, perfect for creating eye-catching digital signage in retail, impressive residential installations or taking sports venue distribution to new immersive levels. HDCP 2.2 compatibility also means that protected 4K content including movies and TV shows can be viewed without issue. As opposed to the use of copper based extension systems, the use of fibre optic cable also ensures immunity to RF and EMI, providing a stable signal in ---noisy--- retail or industrial environments which can have a high interference from electronics. With the ability to extend signals up to 300m the extender provides huge installation flexibility, the transmitter can be easily connected to a variety of HDMI source devices such as Blu-Ray players, 4K HDR media players or PC's in a convenient location, while the receiver can be placed in a suitable viewing area along with a 4K display or projector.The extender can also support 4K@30Hz non-HDCP content up to 1.5km with single mode fibre cable, great for even longer distance distribution of gaming or PC content. The included mounting brackets also allow for a neat installation under desks or discreetly hidden behind displays. In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue. Featuring bi-directional IR and RS-232 ports, the extender provides the capability for source equipment to be seamlessly controlled from the display side, and the display can also be controlled from the HDMI source device, great for providing simple, flexible control over the installation for the user. Alternatively, when IR is not used, support for RS-232 enables the extension of control signals as part of a larger installation.
Media & Performance

Media Type SupportedOptical Fiber

Video

Graphics Modes4K
Maximum Video Resolution3840 x 2160

Interfaces/Ports

Number of HDMI Inputs1
Number of HDMI Outputs1
HDMI InYes
HDMI OutYes

Physical Characteristics

Transmitter Height25.60 mm
Transmitter Width100 mm
Transmitter Depth65 mm
Receiver Height25.60 mm
Receiver Width100 mm
Receiver Depth65 mm
Transmitter Weight (Approximate)516 g
Receiver Weight (Approximate)516 g
Product ColorBlack
Color FamilyBlack


Technical Information

Connectivity TechnologyWired
Maximum Operating Distance1 km
Number of Output Devices Supported1
Number of Input Devices Supported1

General Information

Product TypeVideo Extender Transmitter/Receiver
Manufacturer Part Number38174
lindy
ManufacturerLindy Electronics
Product Name300m/1000m Fibre Optic HDMI 4K60, IR, RS232 & Audio Extender
Brand NameLINDY

Miscellaneous

Application/UsageDigital Signage System
Residential
Package ContentsTransmitter unit
Receiver unit
2 x Multi-Country Power Supply (EU, UK, US & AUS)
2 x Fibre SFP+ Modules
2 x Terminal Blocks
2 x IR Emitter Cable
2 x IR Receiver Cable
Lindy Manual

Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
