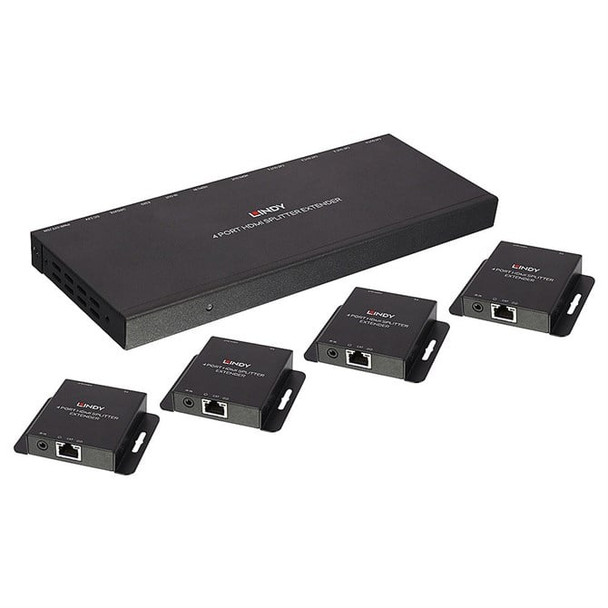

Lindy 70M Cat.6 4 Port Hdmi 4K30 And Ir Splitter Extender With Loop Out. Type: T 38155

Lindy 70m Cat.6 4 Port HDMI 4K30 and IR Splitter Extender with Loop Out. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 50 m. Transmitter video port type: HDMI, Transmitter local video port type: HDMI. Receiver local video port type: HDMI. AC adapter output voltage: 12 V, AC adapter output current: 2.5 A. Transmitter width: 11.8 cm, Transmitter depth: 25 cm, Transmitter height: 3.2 cm The Lindy 70m Cat.6 4 Port HDMI and IR Splitter Extender is a simple to use plug and play solution that allows users to extend an HDMI signal up to 70m and then distribute that signal to four displays using low cost Cat.6 UUTP cable (not included). For added convenience IR signals (20-60kHz) can also be extended using the supplied IR receiver and emitter cables. Supporting resolutions up to 4K30, including 1080p 3D, the Splitter Extender is designed for use in AV and digital signage applications for a variety of settings such as home, education, business, retail and healthcare. An integrated HDMI loop-through output on the transmitter unit enables simultaneous viewing so that a local display can be connected for monitoring, or to create an additional viewing zone. For larger installations, the HDMI loop-through port can also be used to cascade up to 3 transmitters allowing up to 12 displays to be connected to a single source. The HDMI loop-through port also allows the Splitter Extender to clone the EDID of a connected display. An integrated EDID emulation system provides 9 EDID presets for ultimate compatibility with a variety of EDID enabled devices. Power over Cable (PoC) functionality provides power for the complete installation using only a single power supply connected to the transmitter - a perfect solution for retro fit installations where receivers may be located away from a mains power supply. The power supply is connected via a screw type DC jack, providing a secure and reliable connection, ideal for installations where accidental disconnections could occur. For added convenience the Splitter Extender's slim design and integrated mounting brackets make it easy to install in limited spaces behind modern flat screen displays. Please Note: The quoted resolutions are possible with a direct connection between transmitter and receiver using good quality Cat.6 solid core cable. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of maximum distances.
Media & Performance

Twisted Pair Cable StandardCategory 6
Media Type SupportedTwisted Pair

Video

Graphics ModesFull HD
Maximum Video Resolution1920 x 1080

Miscellaneous

Package ContentsHDBaseT Extender for HDMI Transmitter and Receiver
2 x 5V DC 2A Multi County PSU (with Euro. US. UK and Australian/China AC connectors)
IR Transmitter with 3.5mm connector.
1.4m IR Receiver with 3.5mm connector.
1.4m
LINDY Manual

Environmentally FriendlyYes
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)

Physical Characteristics

Transmitter Height83 mm
Transmitter Width210 mm
Transmitter Depth17 mm
Receiver Height68 mm
Receiver Width79 mm
Receiver Depth17 mm
Transmitter Weight (Approximate)443 g
Receiver Weight (Approximate)131 g
Product ColorBlack
Color FamilyBlack


Technical Information

Connectivity TechnologyWired
Maximum Operating Distance50 m
Number of Output Devices Supported5
Number of Input Devices Supported1

General Information

Product TypeVideo Extender Transmitter/Receiver
Manufacturer Part Number38155
lindy
ManufacturerLindy Electronics
Product Name50m Cat.6 4 Port HDMI & IR Splitter Extender with Loop Out
Brand NameLINDY

Interfaces/Ports

Number of Network (RJ-45) Ports8
Network (RJ-45)Yes
Number of USB Ports1
Number of HDMI Inputs1
Number of HDMI Outputs5
HDMI InYes
HDMI OutYes
