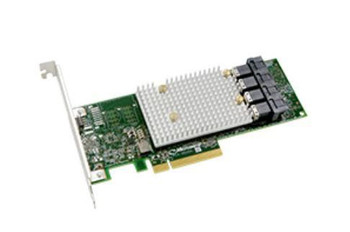

Microchip Smarthba 2200-16I Low-Profile Internal Slimsas Connector Using Sff-940 220016IX2S

Microchip SmartHBA 2200-16i - Low-profile - Internal SlimSAS connector (using SFF-9402 pinout to support U.2 and U.3) - PC, Linux - Windows Server, Windows 10, Red Hat Enterprise Linux, Ubuntu Linux Supported Operating System The Adaptec?- SmartHBA 2200-16i host bus adapter offers maximum performance with SAS/SATA/NVMe tri-mode functionality and basic RAID, enabling high-performance connectivity solutions for server OEM, storage systems, data center, and enterprise customers. Built on Microchip's proven 5th generation SmartIOC 2200 storage controller, the SmartHBA 2200-16i supports a x8 PCIe Gen 4 host interface with16 media facing port variants for internal Tri-mode connectivity. New technologies available with the SmartHBA 2200 family includes DirectPath, which integrates a PCIe switch for the industry's lowest latency and highest bandwidth NVMe solution and Microchip's Dynamic Channel Multiplexing (DCM) technology that aggregates expander attached SAS or SATA hard drives onto 24G SAS infrastructure with near 100% link efficiency for unparalleled through-put. Native HBA modes for all media types are also supported, which offers the lowest latency for memory-based PCIe storage. SmartHBA 2200 adapters include Microchip's Trusted Platform support which delivers a new level of compute and supply chain security based on a hardware root of trust that is aligned with the Open Compute Security Project, and support Self-Encrypting Drive (SED) management software. The SmartHBA 2200 supports both Intel?- Virtual Pin Port (VPP) for intelligent backplane management and SFF's Universal Backplane Management (UBM) standards to simplify integration and enhance product flexibility for system integrators. Also supported are industry leading storage management including standards-based Platform Level Data Model (PLDM)/Redfish?- Device Enablement (RDE) to simplify integration and and Microchip's ChipLink Diagnostic Tool with signal integrity analysis and context sensitive documentation to accelerate time to market.
Interfaces/Ports

SAS Connector DetailsInternal SlimSAS connector (using SFF-9402 pinout to support U.2 and U.3)

Technical Information

FeaturesS.M.A.R.T. Support
Operating System SupportedSolaris
SuSE Linux Enterprise Server
Ubuntu Linux
VMware ESXi
Windows 10
Windows Server
CentOS
Citrix XenServer
Debian Linux
FreeBSD OS
Oracle Linux
Red Hat Enterprise Linux


Miscellaneous

Platform SupportedPC
Linux
Environmental ComplianceRestriction of Hazardous Substances (RoHS)

Physical Characteristics

Length167.6 mm
Height68.8 mm
Card HeightLow-profile

General Information

Manufacturer Part Number220016IX2S
Manufacturer Website Address microchip
ManufacturerMicrochip Technology Inc.
Product Model2200-16i
Product Name24G SAS/SATA/NVMe PCIe Gen 4 Host Bus Adapter
Product LineSmartHBA
Brand NameMicrochip
