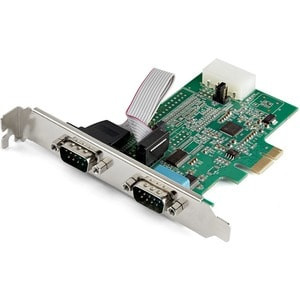

Startech 2-Port Pci Express Rs232 Serial Adapter Card Pcie To Dual Serial Db9 Rs PEX2S953

StarTech 2-port PCI Express RS232 Serial Adapter Card - PCIe to Dual Serial DB9 RS-232 Controller - 16950 UART - Windows and Linux - 2-port PCI Express RS232 serial controller card 16950 UART/ASIX AX99100 - Bi-directional speeds 921.6Kbps/port | 256 byte FIFO | 9th data bit - Pin 9 pwr out 5v/12v/none w/up to 2A total - Expansion card w/ Std bracket (low profile incl) - Win/Linux This multiport PCI Express RS232 serial adapter card lets you add two RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot, as if they were native serial ports. The dual port PCIe serial card enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.6Kbps. Maximum Compatibility With broad OS support, including for Windows and Linux, this 2 port PCI E serial card is easy to integrate into mixed environments. The card comes pre-configured with a full-profile bracket, and includes optional low-profile brackets, so installation is easy regardless of the case form factor. This card is a direct replacement for PEX2S952 . Experience Optimal Technology This PCIe to serial adapter supports the following features:Industry standard 16950 UART compatible Supports max baud rate of up-to 921.6Kbps Provides 5/12V power output on Pin 9 when external power is connected 256-byte depth FIFO cache per transmitter and receiver Supports 9, 8, 7, 6, 5 data bits (one per port) Asix AX99100 chipset Base PCI Express 1.1 compliant Low and full-profile brackets included The Choice of IT Pros Since 1985 StarTech conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech Technical Advisors have broad product expertise and work directly with our StarTech Engineers to provide support for our customers both pre and post-sales. PEX2S953 is backed by a StarTech lifetime warranty and free lifetime technical support. More from the Manufacturer More from the Manufacturer
Interfaces/Ports

Number of Serial Ports (External)2

Technical Information

Host InterfacePCI Express 1.1 x1
Platform SupportedLinux
PC
UART Type16950

Physical Characteristics

Form FactorPlug-in Card
Length76.2 mm
Height15.2 mm
Width63.5 mm
Card HeightLow-profile


General Information

Product TypeSerial Adapter
Manufacturer Part NumberPEX2S953
startech/uk
Packaged Quantity1
ManufacturerStarTech
Product Name2-Port PCI Express RS232 Serial Adapter Card - 16950 UART
Brand NameStarTech
