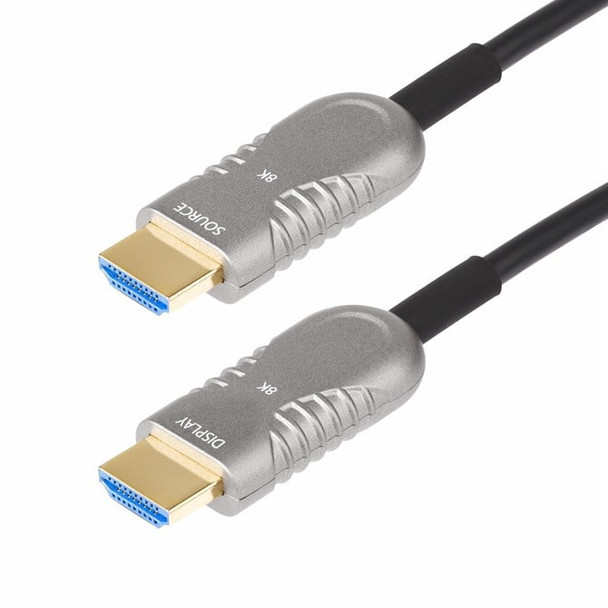

StarTech.com 50ft 15.2m HDMI 2.1 Hybrid Active Optical Cable AOC CMP Plenum Rate 8K-A-50F-HDMI-CABLE

Reliably connect high-bandwidth HDMI 2.1 devices through plenum spaces

Route this Ultra High Speed HDMI 2.1 Hybrid Active Optical Cable (AOC) through office plenum spaces for long distance transmission of 8K 60Hz video and high quality audio.

Hybrid AOC Construction

The HDMI 2.1 AOC incorporates a hybrid construction consisting of fiber optic cores and copper conductors. This enables the offloading of low-bandwidth signals (EDID/HDCP/eARC) to maintain high-bandwidth transmission of 8K 60Hz video over fiber. The fiber optic inner cores and shielded copper conductors greatly reduce EMI for optimal signal quality across longer distances.

Full-Featured HDMI 2.1

The 8K HDMI Fiber Optic Cable supports full HDMI 2.1 specifications:
- High Bit Rate 3 (HBR3) supports up to 48Gbps bandwidth for higher refresh rates
- High Dynamic Range (HDR10+) with 12-bit processing for higher contrast ratio and vibrant, cinematic picture quality
- Enhanced Audio Return Channel (eARC) for uncompressed 7.1 and 32-channel audio
- Display Stream Compression 1.2a (DSC) for maximum resolution output
- Forward Error Correction to manage data transmission errors
- High-Bandwidth Digital Content Protection (HDCP 2.3) for a secure connection between source and display

Flexible Plenum-Rated Cabling

This Plenum-Rated HDMI 2.1 Cable features a CMP-rated cable jacket with low-smoke and flame characteristics. It is ideal for use in plenum spaces in buildings (e.g., ceilings and in-wall installations). The optical fiber core is reinforced with Aramid strands for tensile strength, and is rated to withstand over 6,000 bending cycles at 120 degrees. This protects the cable from damage when routing through tight spaces requiring multiple bends.

The 4.6mm (0.18in) cable outer diameter is flexible and slimmer than typical passive HDMI cables, making it suitable for installation in space-constrained environments.

Please Note : This cable is unidirectional and must be installed in a specific direction. Please refer to the SOURCE and DISPLAY labels on the HDMI connectors to ensure that each end corresponds with the correct hardware.

The StarTech Advantage

Specs




Features


Cable length

How long the cable is.
.2 m


Connector 1

This is the first connector in the device.

HDMI Type A (Standard)


Connector 2

This is the second connector in the device.

HDMI Type A (Standard)


Connector 1 gender

The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.

Male


Connector 2 gender

The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.

Male


Connector 1 form factor

Straight


Connector 2 form factor

Straight


Product colour

The colour e.g. red, blue, green, black, white.

Black, Silver


Supported graphics resolutions

The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.

4096 x 2160, 7680 x 4320


Audio Return Channel (ARC)




HDCP

High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.




HDCP version

2.3


Data transfer rate

Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.

48 Gbit/s


High Dynamic Range (HDR) supported




High Dynamic Range (HDR) technology

High Dynamic Range 10+ (HDR10 Plus)


Supported digital audio channels (uncompressed)

7.1, 32


Unidirectional




Maximum refresh rate
0 Hz


AWG wire size

28/30


Connector contacts plating

What the connector contacts are covered with (layer on top).

Gold



Features


Cable rating

CMP


Cable type

Type of cable e.g. electicity cable, optical cable.

Round cable


Cable jacket material

Polyvinyl chloride (PVC)


Cable shielding

The protective layer for the cable, typically made of plastic.

Aluminum mylar foil


Colour depth
bit


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 45 -C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-10 - 70 -C


Operating relative humidity (H-H)
- 90%


Weight & dimensions


Cable diameter

The distance from one side of the cable to the other, with a straight line going through the middle of the cable.

4.6 mm


Packaging data


Package width

The distance from one side of the packaging to the other.

235 mm


Package depth

The distance from the front to the back of the packaging.

220 mm


Package height

The distance from the top to the bottom of the packaging.

38 mm


Package weight

Weight of the packaged product.

500 g


Quantity per pack

1 pc(s)


Logistics data


Master (outer) case width

465 mm


Master (outer) case length

425 mm


Master (outer) case height

265 mm


Products per master (outer) case
pc(s)
