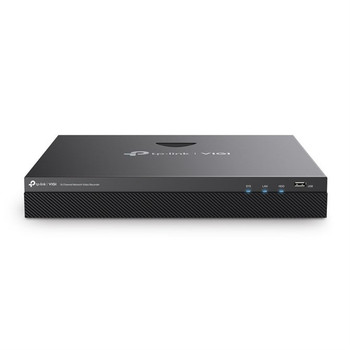

TP-Link VIGI 8 Channel Network Video Recorder VIGINVR1008H

Security Never Shuts Down
VIGI NVR1008H 8 Channel Network Video Recorder

VIGI NVR Introduction
The VIGI network video recorder coordinates with camera systems to help you view, store, and playback videos.

Security for every hour and every day.
24/7 Continuous Recording
Automatically stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.

Every angle all on one screen.
8-Channel Real-Time Live View
Sharp image definition up to 5MP and an 8 channel display ensures you capture every detail, from every angle.

Reviewing footage is faster than ever.
4-Channel Simultaneous Playback
Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.

Keep an eye on things even when you are on the move.
Remote Monitoring
Dedicated VIGI app is developed for remote monitoring, providing ease and convenience.

No need to check long compatibility lists.
Onvif Ensures Compatibility
Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.

Up to 720 days of footage stored locally.
1 HDD (up to 10 TB)
Stores up to 10 TB ( 720 days of video) on a SATA hard drive, keeping your data storage secured locally.

Greet your visitors before they enter.
Two-Way Audio
With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.

More bandwidth for more cameras.
80 Mbps Video Access Bandwidth
High video access bandwidth ensures your NVR connects more cameras with high resolution.
Based on laboratory testing using VIGI cameras, VIGI NVR can connect up to eight 4MP cameras.

Manage everything with one.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build—whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

Specs




Performance


Video input channels

The number of channels for video input that the device features.

8 channels


Number of simultaneously playbacked channels

4 channels


Video recording modes
80p


Maximum resolution

The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
20 x 1080 pixels


Supported resolutions
20 x 1080, 1280 x 720, 1440 x 900, 1280 x 1024


Input bandwidth

80 Mbit/s


Output bandwidth

60 Mbit/s


Wireless LAN features


Wi-Fi

Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.




Hard drive


HDD capacity

The maximum storage capacity of the hard disk, usually measured in bytes e.g. GB.

0 GB


Number of HDDs supported

The total number of hard drives that can be used in/with this product.

1


Maximum storage capacity

The maximum amount of data that can be stored in the device.

0 TB


HDD interface

The way that a hard disk drive (HDD) is connected to the rest of the computer through a 'bus' such as ATA or SCSI.

Serial ATA


Ports & interfaces


Ethernet LAN (RJ-45) ports

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1


HDMI ports quantity

The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.

1


USB 2.0 ports quantity

Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.

2


Audio RCA inputs

1


Audio RCA outputs

1


DC-in jack

The socket/plug where the DC electricity supply connects to the device.





Features


Rack mounting

The type of mounting that can position devices in a shelving system (rack).




Rack capacity

The spase that device fill in rack.

1U


Product colour

The colour e.g. red, blue, green, black, white.

Black


Power


Output voltage
V


Power supply

The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.
W


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

-10 - 55 °C


Weight & dimensions


Width

The measurement or extent of something from side to side.

246.2 mm


Depth

The distance from the front to the back of something.
8.2 mm


Height

The measurement of the product from head to foot or from base to top.

42.6 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

578.5 g


Package width

The distance from one side of the packaging to the other.

277.5 mm


Package depth

The distance from the front to the back of the packaging.

296.5 mm


Package height

The distance from the top to the bottom of the packaging.

64.5 mm


Package weight

Weight of the packaged product.

1.07 kg


Logistics data


Harmonized System (HS) code

85219000
